Nonwoven Bag Making Auxiliary Equipment

Complete your nonwoven bag production workflow with auxiliary equipment for material preparation, cutting, handle sealing, sewing, punching, printing, testing and sample development. Select individual machines according to your bag type, material width, production speed and downstream process requirements.

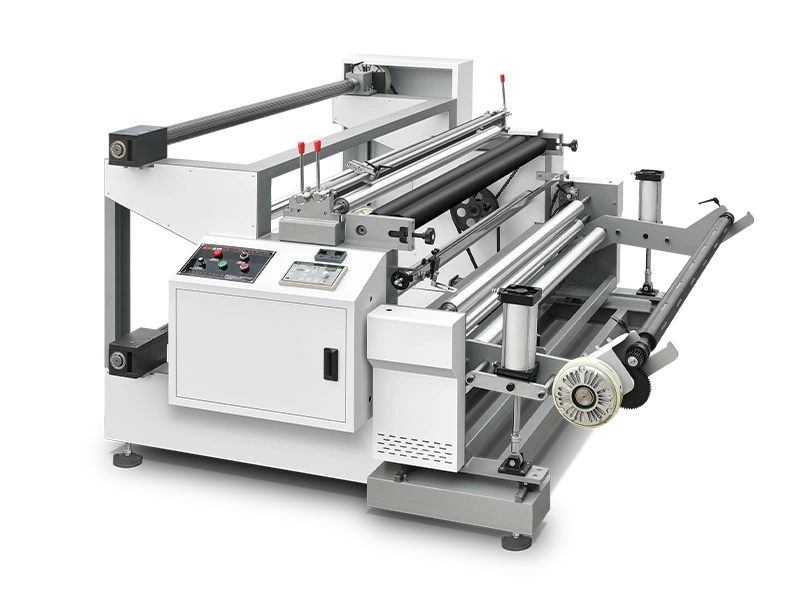

ZXC-A1700

Non Woven Slitting Machine

Machine parameters

Type	ZXC-A1700
Max Fabric Roll Width	1700mm
Production Speed	20-100m/min
Slitting Width	25-1700mm
Max Diameter of Unwinding	1000mm
Max Diameter of Rewinding	700mm
Voltage	380V
Total Power	2.2kw
Overall Dimension (L×W×H)	2540×1950×1300mm
Weight	1000kg

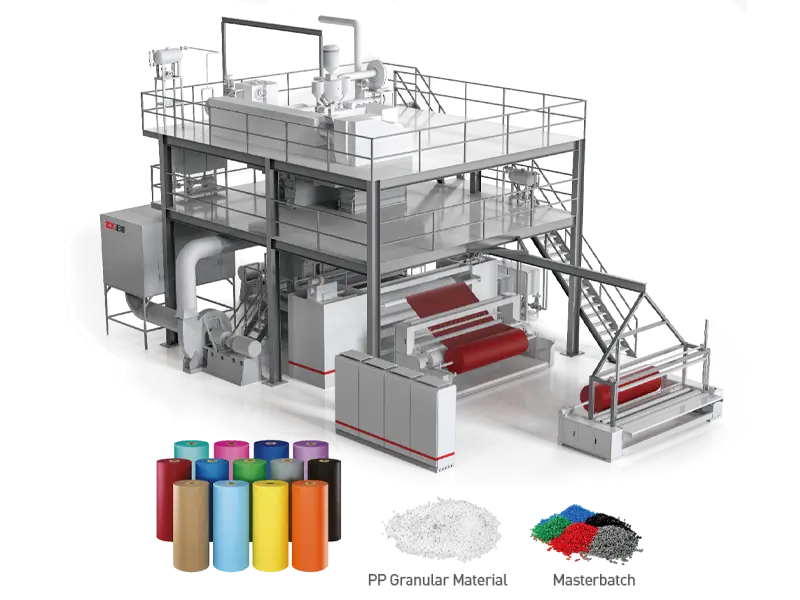

ZX-PPS

Non-woven Fabric Production Line

Machine parameters

Type	ZX-S1600 \| ZX-S2400 \| ZX-S3200
S (Product Width)	1600mm \| 2400mm \| 3200mm
Production Speed	150m/min
Product Gram	9-150g/m²
Yield (Products According To 40g/m²)	4-5T/Days \| 7-8T/Days \| 9-10T/Days
Overall Dimension (L×W×H)	15×8.6×11m \| 15×9×11m \| 15×10×11m

ZX-1300

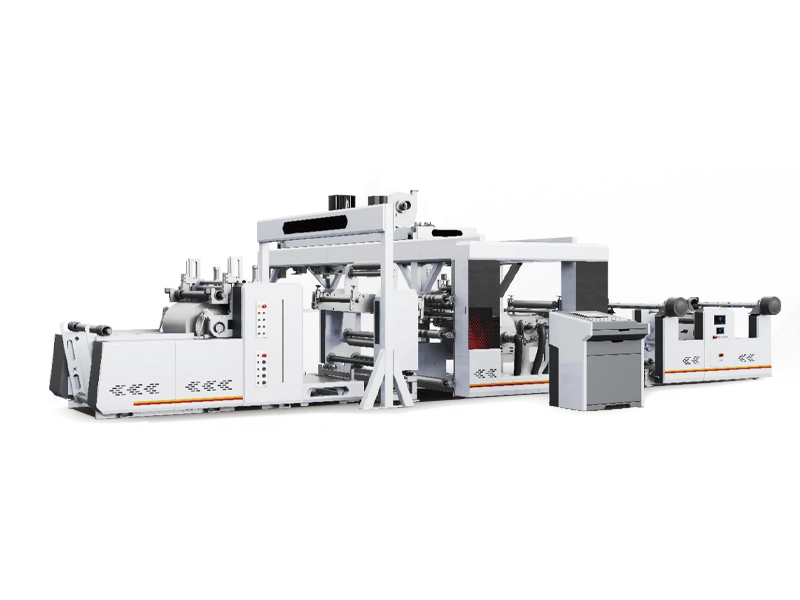

High Speed Non Woven Coating And Laminating Machine

Machine parameters

Type	ZX-1300/90 \| ZX-1700/90
Suitable Base Material	Non Woven Fabric, Woven Fabric
Screw Size	Φ90mm×2
L/D	33:1
Coating Width	600-1200mm \| 900-1600mm
Coating Thickness	7-35g/m²
Coating Material	LDPE, PP
Coating Speed	120-200m/min
	Precise Speed is based on the material and process technology.
Max Extrusion	150kg/h
Main Power	30kw
Total Power	≈297kw \| ≈137kw
Unwinder Diameter	≤φ1200mm
Unwinding Diameter	≤Φ1300mm
Voltage	380/3/4/50 (Volt/Ph/Line/Hz)

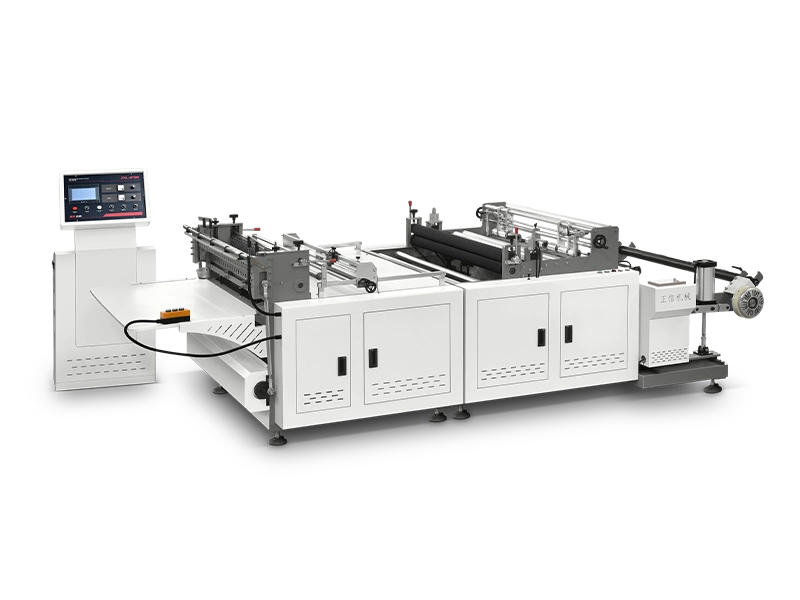

ZXQ-A1300

Non Woven Cross Cutting Machine With Ultrasonic Welding

Machine parameters

Type	ZXQ-A1300 \| ZXQ-A1600
Fabric Roll Width	500-1250mm \| 500-1550mm
Production Speed	40-120pcs/min
Feeding Length	50-800mm
Cutting Width	500-1250mm \| 500-1550mm
Material Thickness	30-120g/m²
Voltage	380V/220V
Total Power	6kw \| 7kw
Overall Dimension (L×W×H)	4300×1900×1500mm \| 4300×2300×1500mm
Weight	1200kg \| 2000kg

ZXQ-B1300

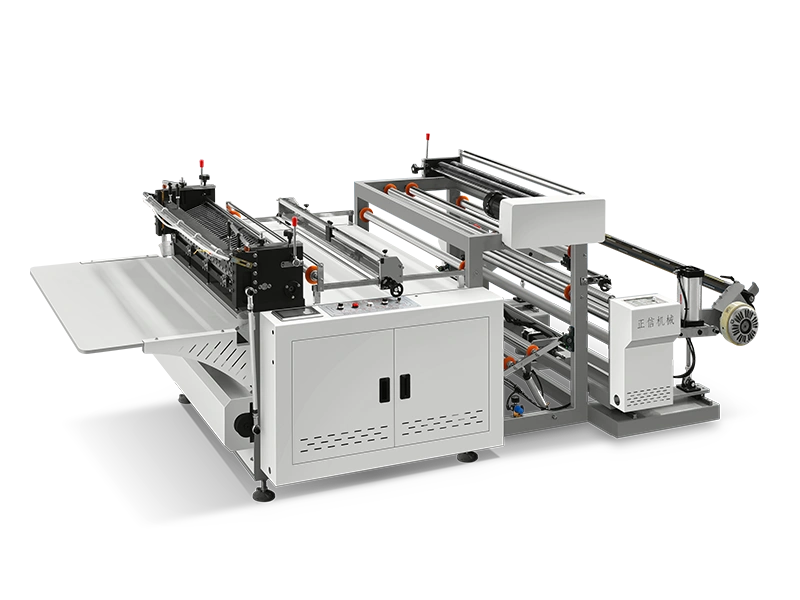

Roll To Sheets Non Woven Cross Cutting Machine

Machine parameters

Type	ZXQ-B1300 \| ZXQ-B1600
Fabric Roll Width	500-1250mm \| 500-1550mm
Production Speed	40-120pcs/min
Feeding Length	50-800mm
Cutting Width	500-1250mm \| 500-1550mm
Material Thickness	30-120g/m²
Voltage	220V
Total Power	4kw \| 6kw
Overall Dimension (L×W×H)	3200×1700×1500mm \| 3500×2100×1500mm
Weight	1000kg \| 1500kg

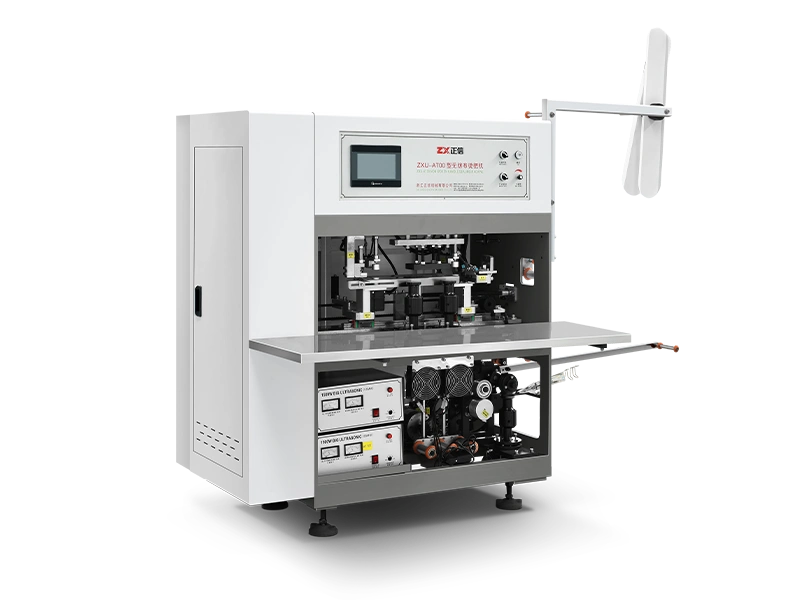

ZXU-A700

Semi Auto Single Loop Non Woven Handle Sealing Machine

Machine parameters

Type	ZXU-A700
Production Speed	5-20pcs/min
Handle Length	380-600mm
Handle Material Thickness	50-100g/m²
Voltage	220V
Total Power	5kw
Overall Dimension (L×W×H)	1300×800×1500mm
Weight	400kg

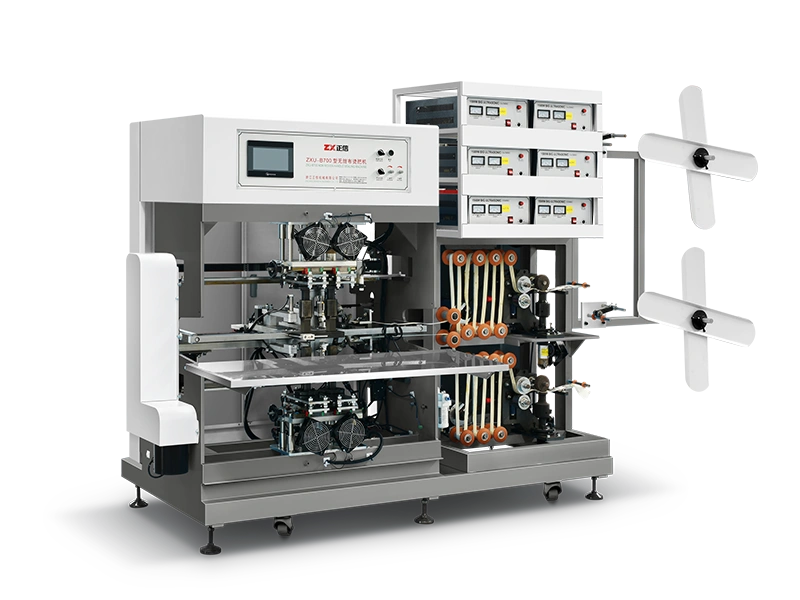

ZXU-B700

Semi Auto Double Loop Non Woven Handle Sealing Machine

Machine parameters

Type	ZXU-B700
Production Speed	10-40pcs/min
Handle Length	380-600mm
Handle Material Thickness	50-100g/m²
Voltage	220V
Total Power	8kw
Overall Dimension (L×W×H)	2300×1070×2100mm
Weight	500kg

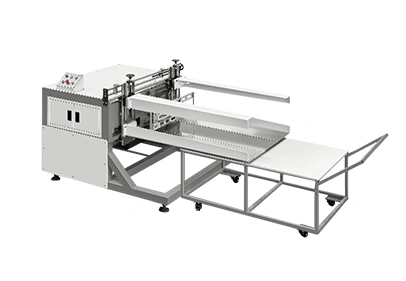

ZX-500

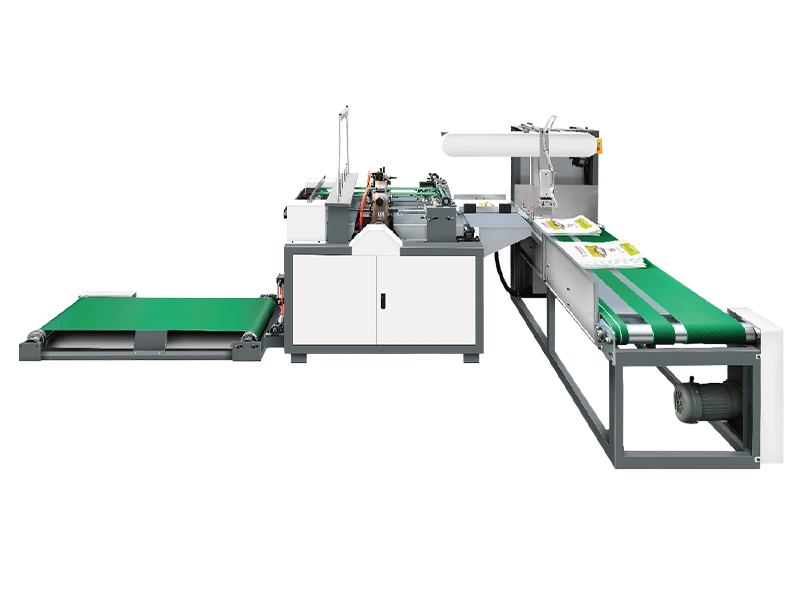

Non Woven Flour Bag Automatic Double Sewing Machine

Machine parameters

Type	ZX-500
Sewing Width	250-450mm
Sewing Length	100-1000mm
Sewing Thickness	50-100g/m²
Sewing Speed	15-20pcs/min
Power	220V
Total Power	3kw
Overall Dimension (L×W×H)	3000×1200×1600mm
Weight	500kg

ZDC-700

Auto T-shirt Bag Punching Machine

Machine parameters

Type	ZDC-700
Bag Width	200-600mm
Bag Height	350-700mm
Production Speed	40-100 pcs/min
Material Thickness	30-100g/m²
Voltage	380V/220V
Total Power	6kw
Overall Dimension (L×W×H)	3100×1086×1950mm
Weight	700kg

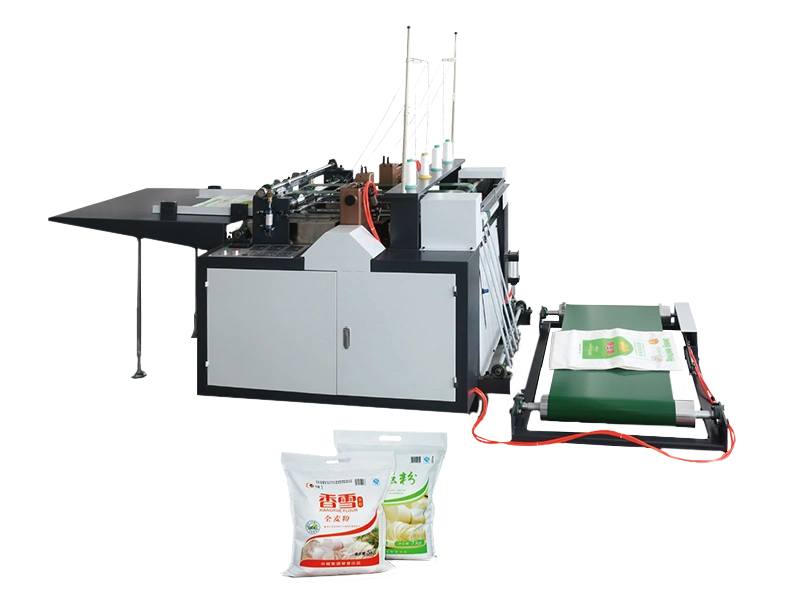

ZX-700

Non Woven Flour Bag Flour Bag Automatic Double Sewing Machine

Machine parameters

Type	ZX-700
Sewing width	270-450mm
Sewing length	350-650mm
Sewing thickness	50-100g/m²
Sewing speed	10-20pcs/min
Power	380V
Total power	3kw
Overall Dimension (L×W×H)	2000×1150×1200mm
Weight	500kg

ZX-850

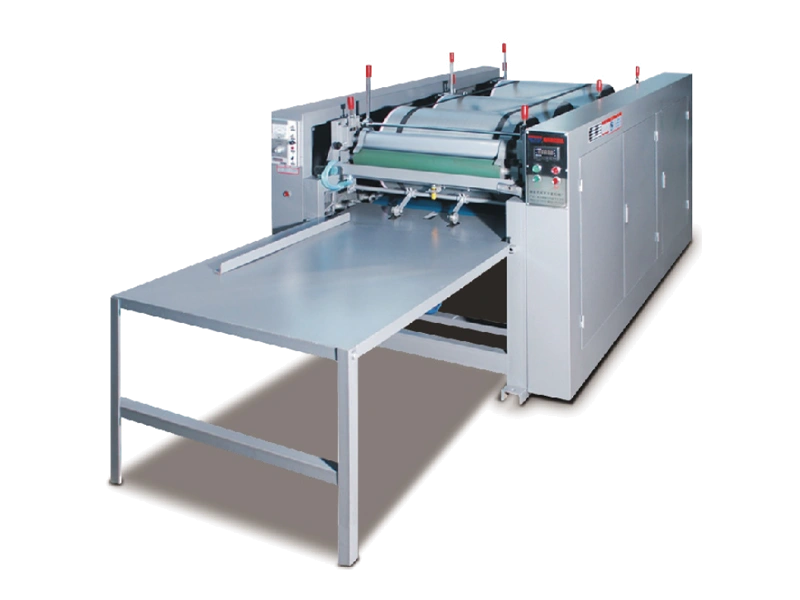

Manual Bag To Bag Flexo Printing Machine

Machine parameters

Type	ZX-850Ⅱ \| ZX-850Ⅲ \| ZX-850Ⅳ
Printing Color	2 color \| 3 color \| 4 color
Max Printing Width	650mm
Plate Thickness	4-6mm
Max. Printing Length	1200mm
Roller Diameter	420mm
Printing Speed	1500-3500pcs/hour
Voltage	380V
Total Power	1.1kw \| 1.5kw \| 2.2kw
Overall Dimension (L×W×H)	1400×1350×1150mm \| 1950×1350×1150mm \| 2400×1350×1150mm
Weight	800kg \| 1100kg \| 1400kg

ZX-600

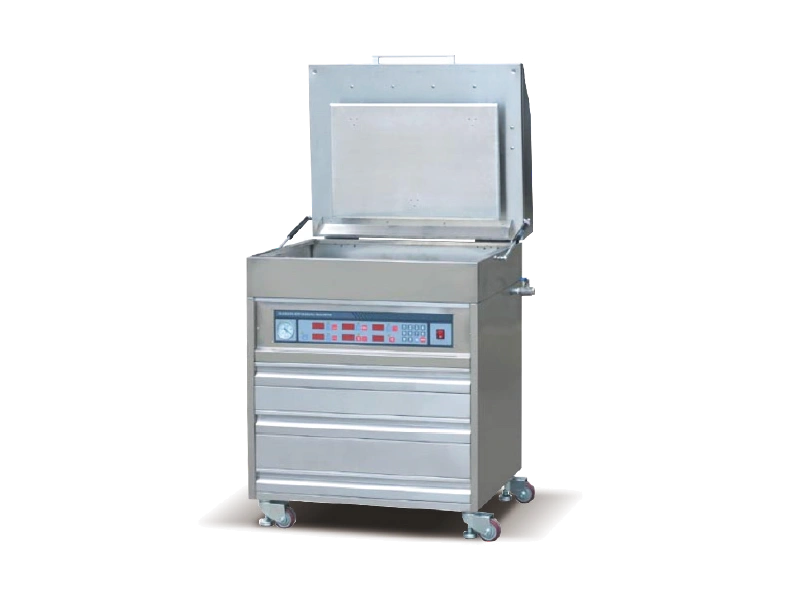

Flexo Printing Plate Making Machine

Machine parameters

Type	ZX-600 \| ZX-800 \| ZX-1200
Plate Making Area	600×400mm \| 800×600mm \| 1200×600mm
Voltage	220V
Total Power	2.3kw \| 3.5kw \| 3.9kw
Overall Dimension (L×W×H)	860x710×1050mm \| 1090×910×1150mm \| 1490x910x1190mm
Weight	150kg \| 280kg \| 400kg

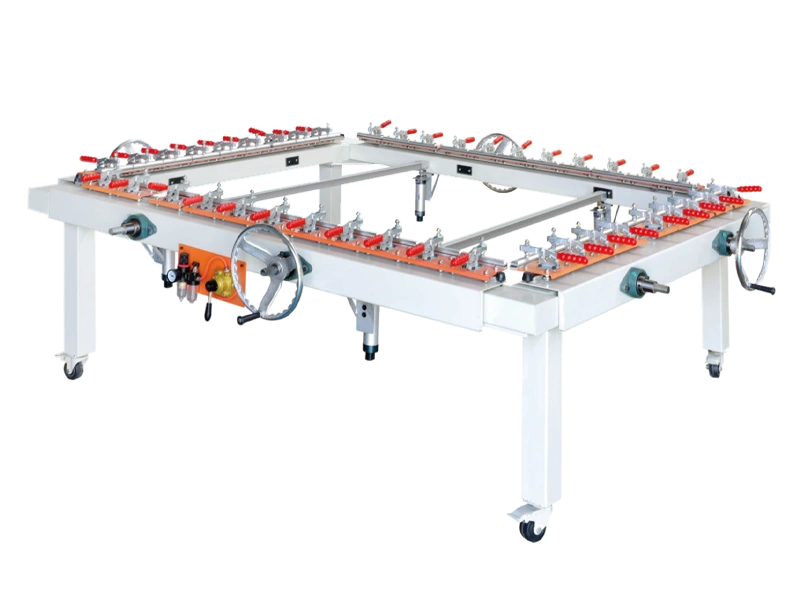

Mechanical Screen Stretching Machine

Machine parameters

Maximum Screen Frame That Can Be Stretched	1200×1500mm
Minimum Screen Frame That Can Be Retracted	1000×1000mm
Maximum Tension For Stretching Screen	40N
Overall Dimension (L×W×H)	2300×2630×820mm
