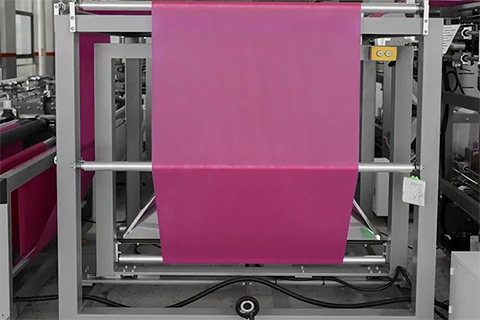

Non woven fabric cross folding device, easy adjustment, which make the bog mouth neat and tidy even without moving the whole machine.
Feeding and computer length fixed by stepping motor, photocell eye tracking, bottom and side gusset making, and the side sealing of T-shirt bag by ultrasonic.

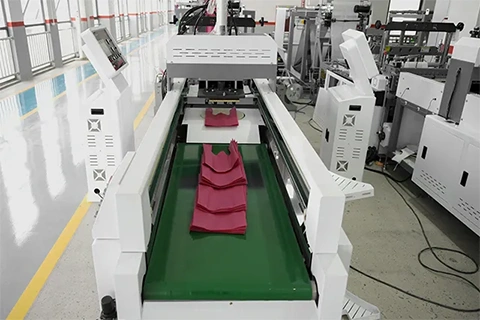

Online auto punching ,Clamping bag, mould stamping intoT-shirtbag.
| Bag width | 200-400mm |
|---|---|
| Bag height | 300-700mm |
| Side gusset | 60-20mm |
| Bag material | 30-120gsm |
| Bag width | 100-800mm |
|---|---|
| Bag height | 200-580mm |
| Handle length | 380-600mm |
| Bag material | 30-100gsm |
| Bag width | 100-800mm |
|---|---|
| Bag height | 200-580mm |
| Side gusset | 60-200mm |
| Handle length | 380-600mm |
A T-shirt bag, also known as a vest bag or W-cut bag, is a bag with integrated handles that resemble a T-shirt shape. When equipped with a gusset (a folded panel at the bottom or sides), it becomes a gusseted pouch with expandable sides and a flat bottom that allows the bag to stand upright and carry more volume.
Gusseted pouches offer increased capacity for thicker or bulkier items. The gusseted design allows the bag to stand upright when filled, maximizing shelf appeal. They provide extra room for items while maintaining stability, making them particularly valuable for grocery stores and take-out services.
Non-woven T-shirt bags are typically manufactured from spunbond polypropylene fabric. The material weight for non-woven bags generally ranges from 30–120 gsm, with 60–120 gsm being most common for standard applications.
Production requires a T-shirt bag making machine such as the ZXL-A700 (single line) or ZXL-A800 (double line) for high-volume production. For gusseted pouches, additional equipment for gusset forming is needed. Optional equipment includes automatic punching machines for the handle cut-out.
Yes, T-shirt bags and gusseted pouches can be produced with custom printing for logos, branding, and promotional messaging. Printing can be integrated into the production line using a non-woven printing machine, enabling efficient one-step production from raw material to finished printed bag.
