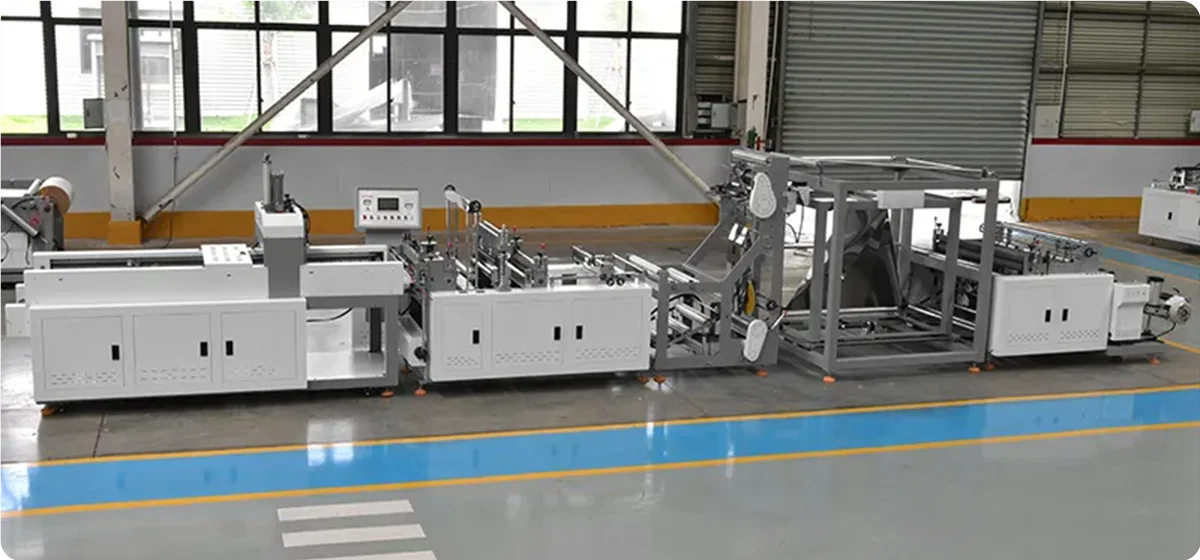

Non Woven T-Shirt and Vest Bag Making Machine
- Bag width
- 200-400mm
- Bag height
- 300-700mm
- Side gusset
- 60-20mm
- Bag material
- 30-120gsm
Product Introduction
Ultrasonic Sealing Technology
Efficient Automatic Production
Multi Functionality&Adaptability
Eco-protection&Energy-saving
Stability and reliability
Scalability and economy
Parameters
| MAIN TECHNICIAN VARIABLES | ZXL-A700 | ZXL-A800 (Double line) |
Bag Diagram | |
|---|---|---|---|---|
| Bag Width | 200-400 mm | 200-300 mm | ① |  |
| Bag Height | 300-700 mm | 300-700 mm | ② | |
| Side Gusset | 60-200 mm | ③ | ||
| The ranges indicated in the parameters above represent the theoretical specifications for bags that this machine can produce. The actual bag specifications should be reasonably configured based on the specific debugging and operational conditions. | ||||
| Fabric Roll Width | 500-1300 mm | 500-1600 mm |  |
|
| Production Speed | 40-120 pcs/min | 80-200 pcs/min (Double line) | ||
| Material Thickness | 30-120 g/m² | 30-120 g/m² | ||
| Voltage | 380V/220V | 380V/220V | ||
| Total Power | 15 kw | 18 kw | ||
| Overall Dimension | 10500×2050×1900 mm | 11000×2350×2100 mm | ||
| Weight | 2900 kg | 3500 kg | ||

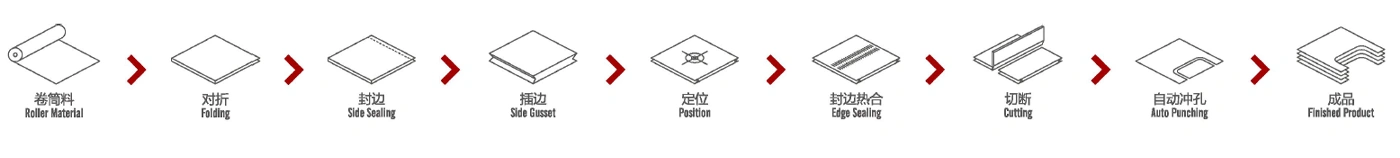

Bag Making Process
Fundamental Stages and Sequence of the Box Bag Making Process

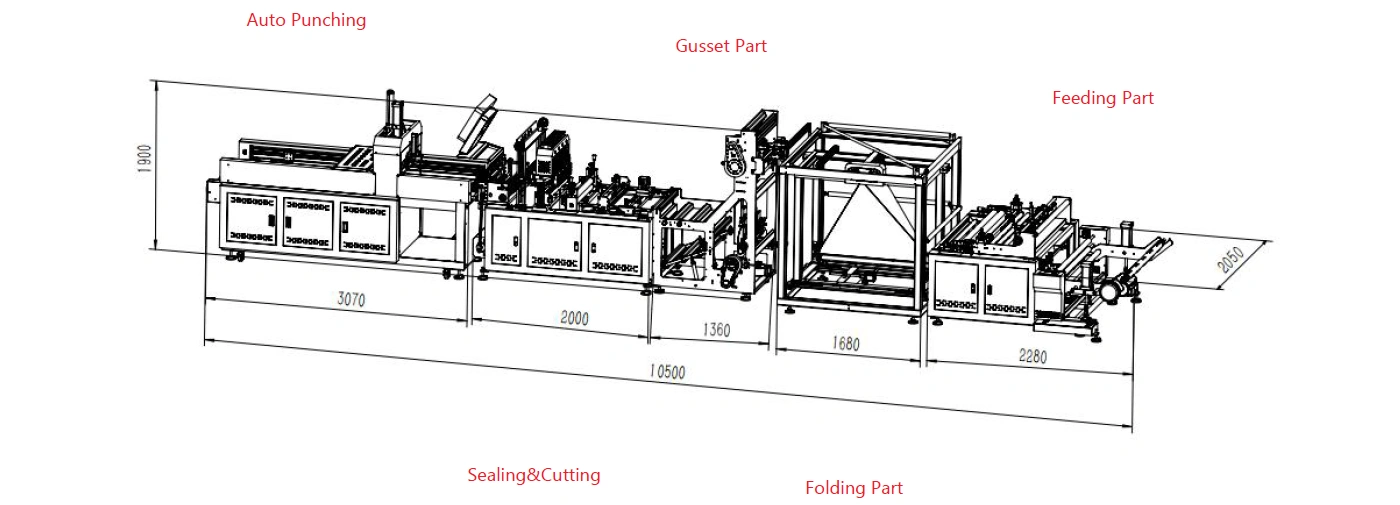

Machine Diagram
Mechanical details
Feeding Part

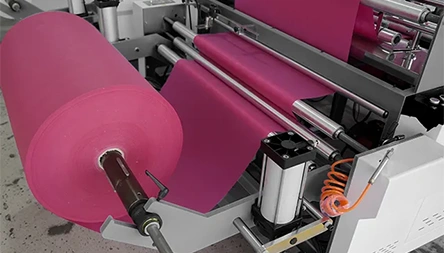

Max width of unwinding 1300mm, max diameter of unwinding 1000mm. Auto feeding, Photocell eye tracking, Auto rectifying deviation, Magnet powder tension control, folding sealing by ultrasonic welding, custom-made round embossing mould.
Folding Part

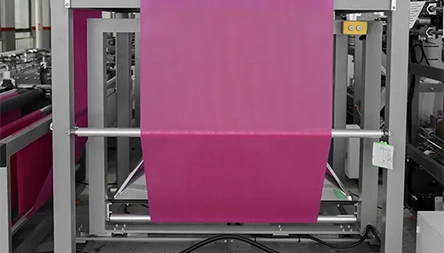

Non-woven fabric cross-folding device with easy adjustment, keeping the bag mouth neat even without moving the whole machine.

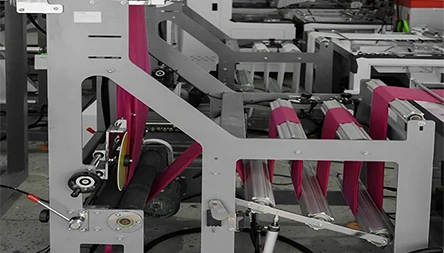

Bottom Insert & Edge Sewing
Feeding and computer length fixed by stepping motor, photocell eye tracking, bottom and side gusset making, and the side sealing of T-shirt bag by ultrasonic.

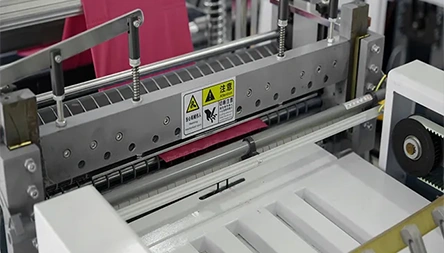

Sealing & Cutting Part
The function of Bag side sealing, cutting, and collection. Adjustable photoelectric sensor for printing color mark tracking and a durable cold cutter. Adopts a two-Taiwan-brand ultrasonic welding system(horn 300 MM), different specs of ultrasonic can be used to meet different nonwoven fabric GSMs.

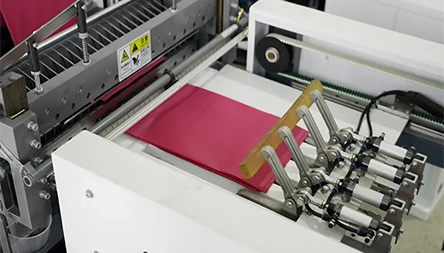

Auto Punching
Online auto punching, Clamping bag, mould stamping intoT-shirtbag.

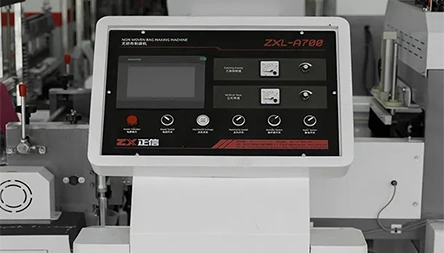

HMI
Integrate all the electricity elements, adopt a split-type design and PLC motion control, as well as a touch screen man-machine interface, for easy operation and maintenance.
Application Examples
Non woven T-shirt bag / Vest bag/ W-cut bag
Non woven T-shirt bag / Vest bag/ W-cut bag
Non woven D-cut bag
Non woven shoes bag / Drawstring bag
What are the technical specifications of the ZXL-A700 bag making machine?
A
The ZXL-A700 model handles fabric rolls from 500-1300mm wide, produces 40-120 bags/minute, and creates bags with a height of 300-700mm and width of 200-400mm. It processes materials weighing 30-120g/㎡, operates on 380V/220V, and requires 15kw of power.
How does your ZXL-A700 model save 5% on fabric costs compared to traditional machines?
A
Our patented feeding and cutting system minimizes material waste through precision alignment and optimized cutting patterns. This efficient use of non-woven fabric directly reduces your raw material expenditure by at least 5%, lowering your cost per bag.
Can your machine produce drawstring bags and D-cut bags in addition to T-shirt bags?
A
Yes, absolutely. The ZXL-A700 is a versatile multi-function machine capable of producing a wide range of bag types online, including T-shirt bags, vest bags, U-cut bags, W-cut bags, D-cut bags, drawstring bags, and non-woven shoe bags without requiring a line shutdown.
What is meant by ''Zero waste production process'' in your bag making machine?
A
Our machine is designed to collect and manage fabric off-cuts and trimmings automatically during the production process. This allows for the recycling of waste material, making the operation more environmentally friendly and reducing cleanup and disposal costs.
How does your machine improve tensile strength and seal integrity?
A
Utilizing advanced ultrasonic sealing technology, the ZXL-A700 creates seals that are often 3 times stronger than the base material itself. This means the fabric can reach its tensile breaking point while the sealed edges remain completely intact, ensuring bag durability.
What are the dimensions and weight of the machine for shipping and installation?
A
The machine has a compact footprint for its output, measuring 10500×2050×1900mm (L×W×H) and weighing approximately 2900kg. Our new structural design reduces transportation space, significantly lowering your international shipping costs.
How does reducing fabric usage lower my working capital occupation?
A
By saving 5% on fabric per bag, you purchase less raw material inventory to produce the same number of bags. This frees up significant working capital that would otherwise be tied up in fabric stock, improving your company's cash flow.
Is the ZXL-A700 machine compatible with the voltage in my country?
A
Yes, our machine is designed for global use and can be configured to operate on both 380V (standard in many countries) and 220V power supplies, ensuring compatibility and easy installation in your factory.
As a manufacturer, what makes your new structural design more efficient?
A
Our redesigned frame and component layout streamline the material path, reduce friction, and allow for faster changeovers between bag styles. This minimizes downtime and maximizes continuous production output, directly boosting your overall operational efficiency.
Do you provide training for operating this specific model?
A
Yes, as a comprehensive machinery manufacturer, we provide detailed operational manuals, video guides, and live online training sessions upon installation. For large orders, we can arrange for our engineers to provide on-site training at your facility.
