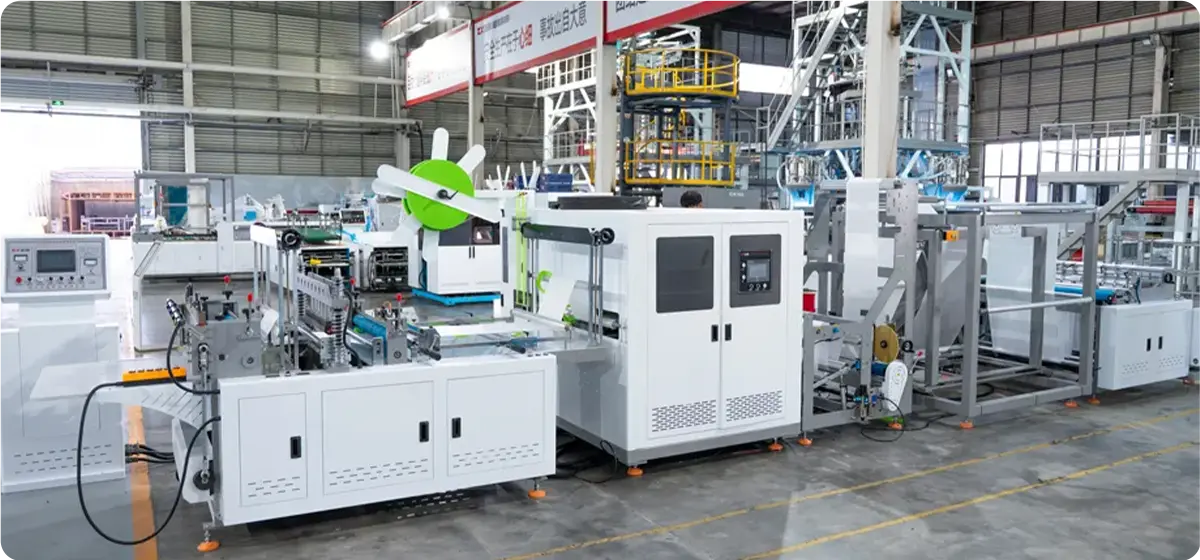

Non-Woven Flat Bag Making Machine with Online Handle
- Bag width
- 100-800mm
- Bag height
- 200-580mm
- Handle length
- 380-600mm
- Bag material
- 30-100gsm
Product Introduction
Efficient and precise molding increases production capacity
Firm and durable, process upgrading
Flexible adaptation, easy operation
Parameters
| MAIN TECHNICIAN VARIABLES | ZXL-D700 | ZXL-D800 | Bag Diagram | |
|---|---|---|---|---|
| Bag Width | 100-800 mm | 100-800 mm | ① |  |
| Bag Height | 200-580 mm | 200-680 mm | ② | |
| Handle Length | 380-600 mm | 380-600 mm | / | |
| The ranges indicated in the parameters above represent the theoretical specifications for bags that this machine can produce. The actual bag specifications should be reasonably configured based on the specific debugging and operational conditions. | ||||
| Fabric Roll Width | 500-1300 mm | 500-1600 mm |  |
|
| Production Speed | 40-120 pcs/min | 40-120 pcs/min | ||
| Handle Material Thickness | 50-100 g/m² | 50-100 g/m² | ||
| Material Thickness | 30-100 g/m² | 30-100 g/m² | ||
| Voltage | 380V/220V | 380V/220V | ||
| Total Power | 15 kw | 18 kw | ||
| Overall Dimension | 10000×2050×1900 mm | 10500×2350×2100 mm | ||
| Weight | 3200 kg | 3500 kg | ||

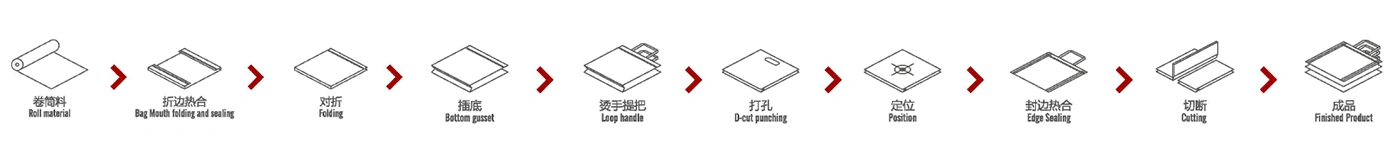

Bag Making Process
Fundamental Stages and Sequence of the Box Bag Making Process
Mechanical details

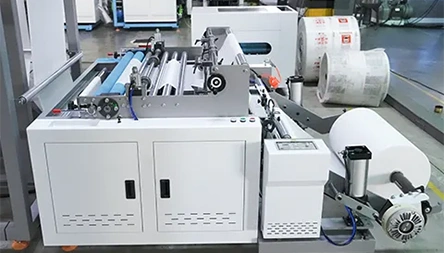

Place the incoming material
Max width of unwinding 1300MM, max diameter of unwinding 1000MM.
Auto feeding, Photocell eye tracking, Auto rectifying deviation, Magnet powder tension control, folding sealing by ultrasonic welding, and custom-made round embossing mould.

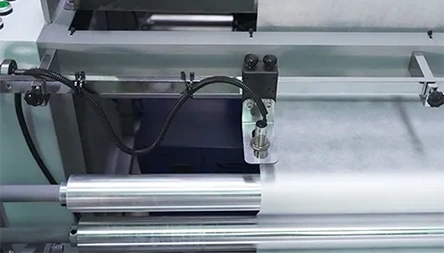

Fabric Folding Part
Non-woven fabric cross-folding device with easy adjustment, making the bag mouth neat, even without moving the whole machine.

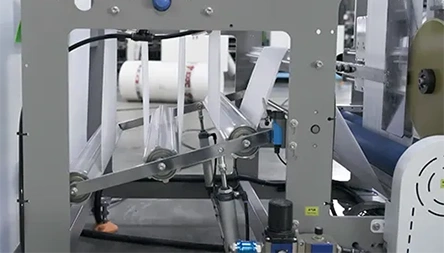

Bag Gusset part
Feeding and computer-controlled length adjustment by stepping motor, photocell eye tracking, bottom and side gusset making, and ultrasonic side sealing of the T-shirt bag.

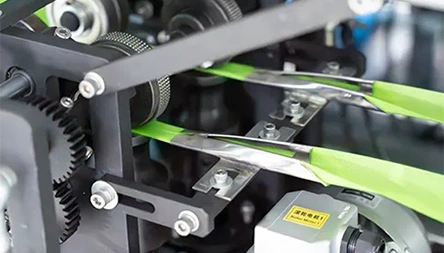

Handle ironing machine
The automatic integration ultrasonic handle sealing device adopts PLC motion control and touch screen man-machine interface, easy operation, and auto stop when there is no material. Handle feeding and length fix by stepping motor, high stability, handle attaching speed up to 75 pcs/min.

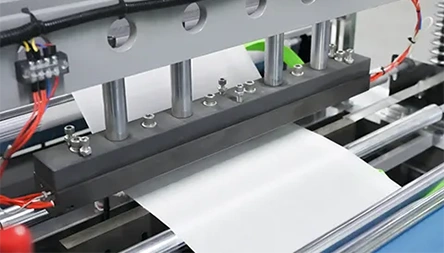

Bag Sealing & Cutting Part
The function of the bag is sealing, cutting, and collecting. Adjustable photoelectric sensor for printing color mark tracking, and a durable cold cutter. Adopts two Taiwan brand ultrasonic welding systems (horn 300 MM), different specs of ultrasonic can be used to meet different non-woven fabric GSM.
Application Examples
Loop handle bag
Non woven D-cut bag
Non woven shoes bag / Drawstring bag
What does the ''4-in-1'' function mean?
A
This machine integrates four key steps into one automated process: unwinding non-woven fabric, precise bag cutting, bottom sealing, and online handle attaching. This eliminates the need for separate handle-punching equipment, dramatically streamlining your production line and saving space.
How does it improve our production efficiency?
A
With a high output of 40-120 bags per minute, it significantly increases your capacity. The continuous, automated ''4-in-1'' process ensures a consistent flow of finished products, reducing bottlenecks and manual handling for maximum throughput.
What is the advantage of online handle attaching?
A
Attaching handles directly within the machine's workflow ensures perfect alignment and a stronger, more reliable seal every time. It removes a major manual or secondary process, drastically cutting labor costs and boosting overall efficiency.
What range of bag sizes can it produce?
A
It offers great flexibility, producing bags with widths from 100mm to 800mm and heights from 200mm to 580mm. This allows you to manufacture a wide variety of popular flat bag styles to meet diverse market demands.
How does this machine ensure handle durability?
A
It uses precise ultrasonic sealing technology to weld the handle onto the bag. This creates a firm, seamless bond that is often stronger than the material itself, preventing handles from tearing or detaching during use.
What are the power requirements?
A
The machine is versatile, supporting both 380V and 220V power supplies with a total power of 15kW. This dual-voltage capability makes it easier to install in different factory settings around the world.
Is it suitable for various materials?
A
Yes. It works with main non-woven fabrics from 30-100g/m² and handle materials from 50-100g/m². This covers a broad spectrum, from standard lightweight bags to heavier, more durable promotional bags.
How user-friendly is the operation?
A
It is designed for easy operation with an intuitive control system. We provide comprehensive training to ensure your team can quickly learn to manage production runs, change settings, and perform basic maintenance.
What kind of after-sales support is available?
A
We provide reliable technical support, including online troubleshooting, a supply of genuine spare parts, and detailed operational guidance. Our goal is to ensure your machine maintains high productivity and a long service life.
