Non-Woven Box Bag Making Machine With Online Handle
- Bag width
- 100-800mm
- Bag height
- 200-580mm
- Side gusset
- 60-200mm
- Handle length
- 380-600mm
Product Introduction
Ultrasonic welding technology: Revolutionizing traditional processes.
Efficient automated production: A powerful tool for reducing costs and increasing efficiency.
Versatility and adaptability: Meeting diverse needs.
Environmentally friendly and energy-saving features: Setting a benchmark for green production.
Scalability and affordability: Helping businesses upgrade.
Stability and reliability: Ensuring continuous output.
Parameters
| MAIN TECHNICIAN VARIABLES | ZXL-E700 | ZXL-E800 | Bag Diagram | |
|---|---|---|---|---|
| Bag Width | 100-800 mm | 100-800 mm | ① |  |
| Bag Height | 200-580 mm | 200-680 mm | ② | |
| Side Gusset | 60-200 mm | ③ | ||
| Handle Length | 380-600 mm | 380-600 mm | / | |
| The ranges indicated in the parameters above represent the theoretical specifications for bags that this machine can produce. The actual bag specifications should be reasonably configured based on the specific debugging and operational conditions. | ||||
| Fabric Roll Width | 500-1300 mm | 500-1600 mm |  |
|
| Production Speed | 40-120 pcs/min | 40-120 pcs/min | ||
| Handle Material Thickness | 50-100 g/m² | 50-100 g/m² | ||
| Material Thickness | 30-100 g/m² | 30-100 g/m² | ||
| Voltage | 380V/220V | 380V/220V | ||
| Total Power | 18 kw | 20 kw | ||
| Overall Dimension | 12000×2050×1900 mm | 12500×2350×2100 mm | ||
| Weight | 4000 kg | 4300 kg | ||

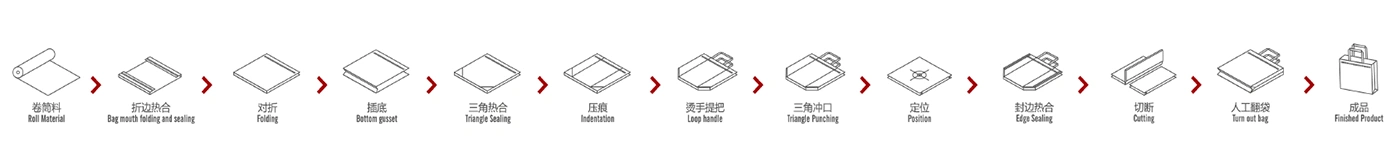

Bag Making Process
Fundamental Stages and Sequence of the Box Bag Making Process

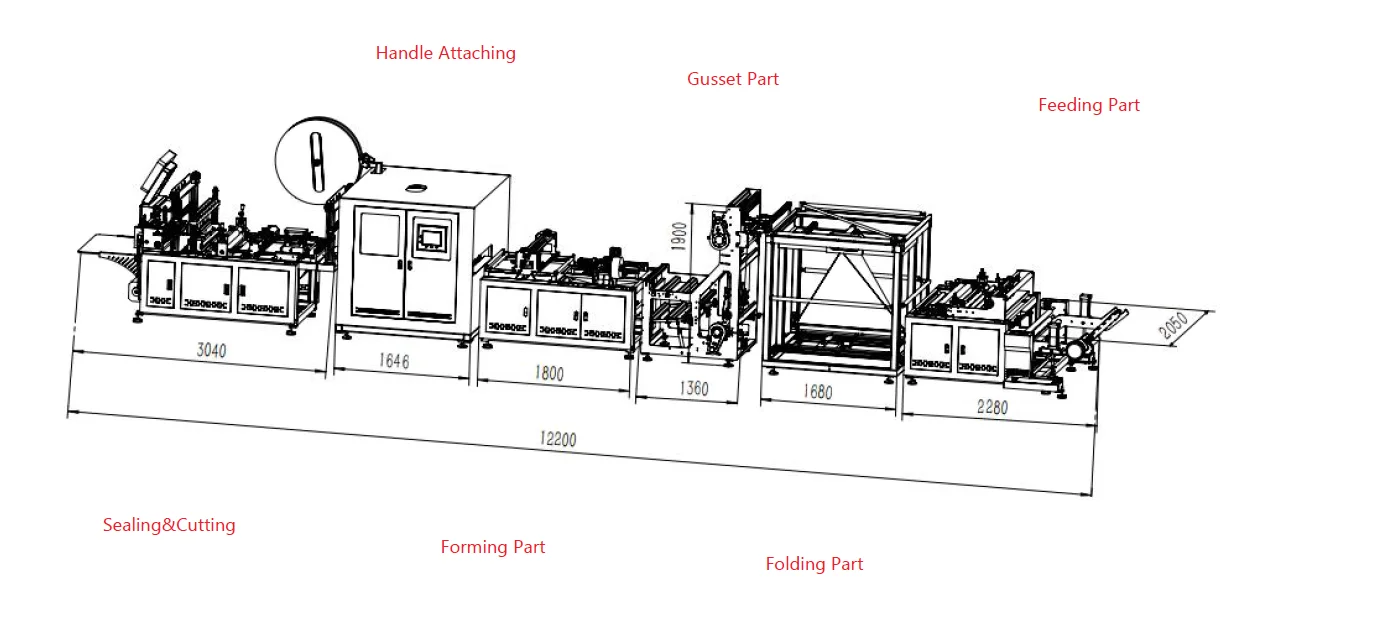

Machine Diagram
Mechanical details

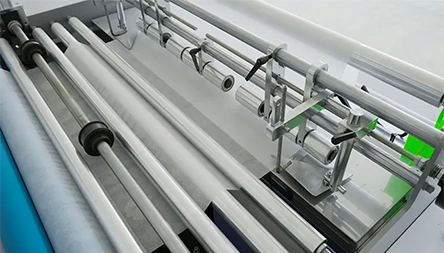

Feeding Parts
Max width of unwinding 1300MM, max diameter of unwinding 1000MM. Auto feeding, Photocell eye tracking, Auto rectifying deviation, Magnet powder tension control, folding sealing by ultrasonic welding, custom-made round embossing mould

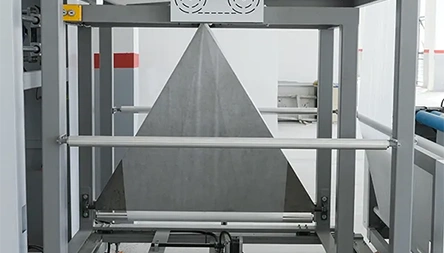

Fabric Folding Part
Non-woven fabric cross-folding device, easy adjustment, which makes the bag mouth neat, even without moving the whole machine.

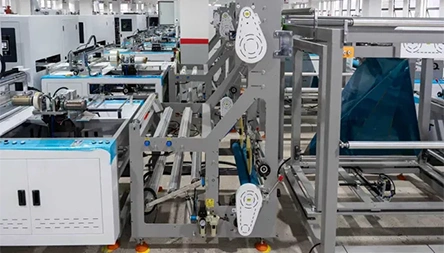

Bottom/Gusset Insert Parts
Feeding and computer length fixed by stepping motor, photocell eye tracking, bottom and side gusset making, and the side sealing of the T-shirt bag by ultrasonic.

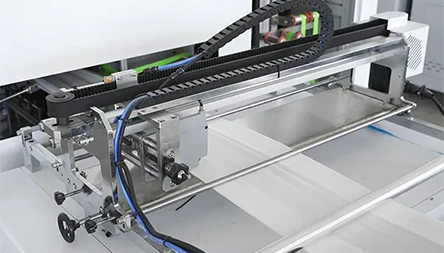

Bag Forming Parts
The function of the box bag is three-dimensional, with a triangle sealing by ultrasonic, PET film unwinding and rewinding, and a D-cut punching unit. Gusset size of box bag from 80 MM to 160 MM, custom-made gusset size up to 300 MM.

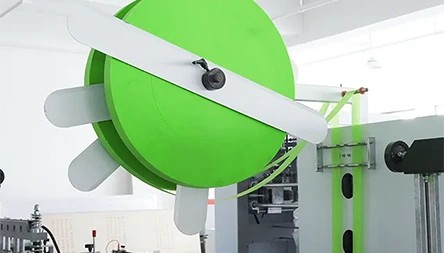

Handle Attaching Parts
The automatic integration ultrasonic handle sealing device adopts PLC motion control and touch screen man-machine interface, easy operation, and auto stop when there is no material. Handle feeding and length fix by stepping motor, high stability, handle attaching speed up to 75 pcs/min.

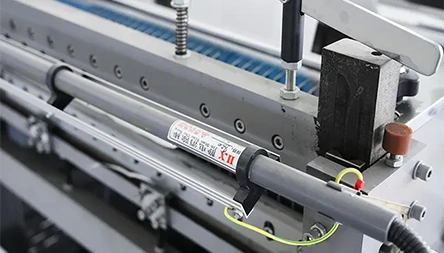

Bag Sealing & Cutting Part
The function of the bag is sealing, cutting, and collecting. Adjustable photoelectric sensor for printing color mark tracking, triangle removing by punching unit, and a durable cold cutter. Adopts two Taiwan brand ultrasonic welding systems (horn 300 MM), different specs of ultrasonic can be used to meet different non-woven fabric GSM.

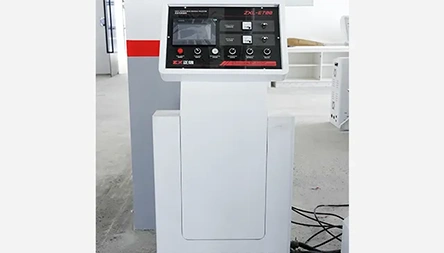

Bag Sealing & Cutting Part
The function of the bag is sealing, cutting, and collecting. Adjustable photoelectric sensor for printing color mark tracking, triangle removing by punching unit, and a durable cold cutter. Adopts two Taiwan brand ultrasonic welding systems (horn 300 MM), different specs of ultrasonic can be used to meet different non-woven fabric GSM.
Application Examples
Three-dimensional flat pocket
Non-woven shoes bag / Drawstring bag
Handle bag with or without bottom
Non woven box handle bag
What makes the ZXL-E700 stand out in non-woven bag production?
A
It uses advanced ultrasonic welding, replacing traditional heat sealing. This ensures stronger seals without consumables, reduces energy use, and offers cleaner, eco-friendly operation. It's ideal for high-quality, efficient, and sustainable bag manufacturing.
How fast can the ZXL-E700 produce bags?
A
With a high output of 40-120 pieces per minute, this machine significantly boosts production efficiency. It's perfect for meeting large order demands while maintaining consistent bag quality across various sizes and styles.
What bag sizes can the ZXL-E700 handle?
A
It accommodates bag widths from 100mm to 800mm and heights from 200mm to 580mm. This flexibility allows the production of diverse bag types, including T-shirt bags and grocery bags, with handle lengths of 380-600mm.
Is the ZXL-E700 suitable for eco-friendly production?
A
Yes. Ultrasonic technology uses no glue or chemicals, reducing waste and energy use. It supports material recycling and lower power consumption, aligning with green manufacturing standards and helping brands meet sustainability goals.
What materials can be used on this machine?
A
It works with non-woven fabrics from 30g/m² to 100g/m² and handle materials between 50g/m² to 100g/m². This includes common polypropylene-based fabrics, ensuring wide material compatibility without compromising seal strength.
How does it help reduce operating costs?
A
By automating the bag-making process and using energy-efficient ultrasonic technology, it cuts labor, material, and power costs. Its high speed and minimal waste further increase overall cost-effectiveness for growing businesses.
What power supply is needed?
A
The machine supports both 380V and 220V power supply options, with a total power of 18kW. This dual voltage capability offers easier adaptation to different factory electrical setups around the world.
Is the machine easy to set up and operate?
A
We provide installation guidance and training for quick setup. The automated controls simplify operation, and minimal manual adjustment is needed, making it user-friendly even for operators with basic technical skills.
What support comes after purchase?
A
We offer reliable technical support, remote troubleshooting, and readily available spare parts. Our service team aims to maximize your machine's uptime and ensure long-term stable performance.
