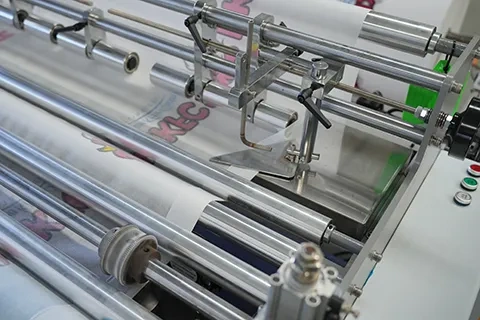

Auto feeding, Photocell eye tracking, Auto rectifying deviation, Magnet powder tension control, folding sealing by ultrasonic welding, custom-made round embossing mould.

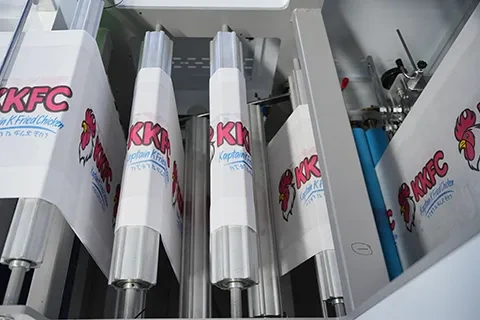

Feeding and computer-controlled length adjustment by stepping motor, photocell eye tracking, bottom and side gusset making, and ultrasonic side sealing of the T-shirt bag.

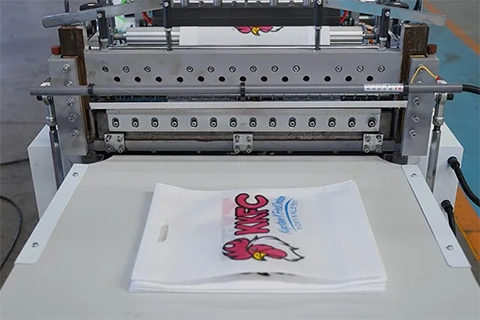

The function of the bag is sealing, cutting, and collecting. Adjustable photoelectric sensor for printing color mark tracking, and a durable cold cutter. Adopts two Taiwan brand ultrasonic welding systems (horn 300mm), different specs of ultrasonic can be used to meet different non-woven fabric GSM.
| Bag width | 100-1200mm |
|---|---|
| Bag height | 200-580mm |
| Bag material | 20-100gsm |
| Roll width | 500-1300mm |
| Fabric roll width | 600-1250 mm |
|---|---|
| Insulation cotton width | 600-1250 mm |
| Handle material thickness | 50-100gsm |
| Handle length | 350-600mm |
| Bag width | 100-800mm |
|---|---|
| Bag height | 200-580mm |
| Side gusset | 60-200mm |
| Handle length | 380-600mm |
Yes, we have extensive experience with various materials. Our ZX-LT500 RPET model is specifically designed for recycled RPET/PET materials, meeting the growing demand for sustainable packaging in EU and US markets【12†L6-L10】. We also support custom solutions for laminated fabrics, non-woven materials with coatings, and other specialty materials【11†L22-L27】. Our team can advise on material selection based on your specific application requirements.
Lead times for custom machines vary depending on the complexity of the design and the specific requirements. Standard custom projects typically require 30-60 days from order confirmation to delivery, while more complex, fully customized production lines may require longer timelines. We provide a detailed project schedule upon order confirmation and keep you updated throughout the development process. Expedited options may be available for urgent projects.
We can customize a broad spectrum of special bag types, including: wire-ironing fruit bags (ZXL-BS2-700)【18†L16-L18】, Chinese medicine bags with online sewing (ZXL-M700)【20†L3-L5】, zipper bags with three-layer feeding (ZXL-H800)【19†L35-L38】, flower bags with three-side sealing (ZXL-1800)【21†L1-L4】, storage box bottom plate bags (ZXL-R800)【22†L31-L34】, drawstring bags (ZXL-350)【23†L10-L13】, and many other custom designs【24†L5-L20】.
