Custom Nonwoven Fruit Protection Bag Making Machine
- Bag width
- 100-1200mm
- Bag height
- 200-580mm
- Bag material
- 20-100gsm
- Roll width
- 500-1300mm
Product Introduction

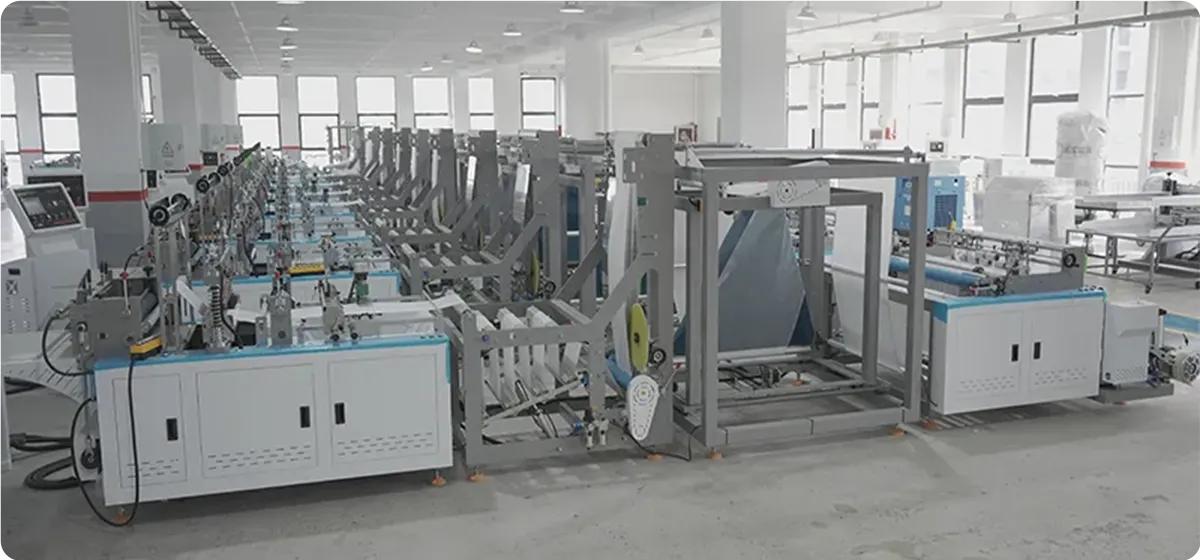

The ZXL-BS700 series is a customized nonwoven bag making machine developed for producing fruit protection bags and other agricultural covering bags. It converts roll-fed nonwoven material through feeding, folding, bottom forming, ultrasonic sealing, cutting and collection according to the required bag design.
The ZXL-BS700 supports fabric rolls from 500 to 1300 mm wide and bag heights from 200 to 580 mm. The wider ZXL-BS800 supports roll widths up to 1600 mm and bag heights up to 680 mm. Both models produce bag widths from 100 to 1200 mm at rated speeds of 40–60 pieces per minute.
The machine processes nonwoven materials from 20 to 100 g/m². Bag dimensions, folding structure, bottom configuration and sealing layout can be adapted according to the fruit type, covering method and customer sample.
It is suitable for factories producing orchard fruit protection bags, agricultural crop covers and customized nonwoven protective packaging.
Parameters
| MAIN TECHNICAL PARAMETERS | ZXL-BS700 | ZXL-BS800 |
|---|---|---|
| Fabric Roll Width | 500-1300mm | 500-1600mm |
| Production Speed | 40-60pcs/min | 40-60pcs/min |
| Bag Height | 200-580mm | 200-680mm |
| Bag Width | 100-1200mm | 100-1200mm |
| Material Weight | 20-100g/㎡ | 20-100g/㎡ |
| Power Supply | 380V/220V | 380V/220V |
| Installed Power | 12kw | 15kw |
| Overall Dimensions | 8000x2050x1900mm | 8500x2350x2100mm |
| Machine Weight | 1900kg | 2400kg |
Custom Configuration Options
- Bag width and height
- Fabric roll width
- Folding method
- Bottom forming structure
- Ultrasonic sealing layout
- Cutting length
- Hole or opening position
- Collection method
- Electrical specification
- Integration with printing or feeding equipment
The ZXL-BS700 series can be configured according to the customer’s fruit protection bag sample and production requirements. Customization may include bag dimensions, folding layout, bottom structure, sealing position, cutting length, material width, electrical specification and downstream collection method.
For technical evaluation, provide the finished bag sample or drawing, material type and weight, target dimensions, required output and available factory layout.
Mechanical details

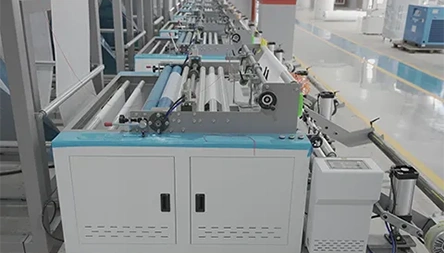

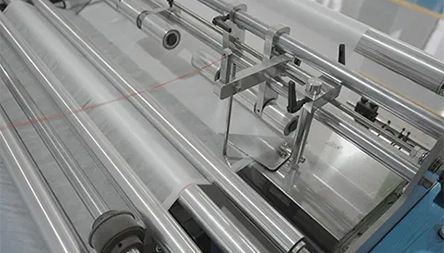

Unwinding and Feeding Unit

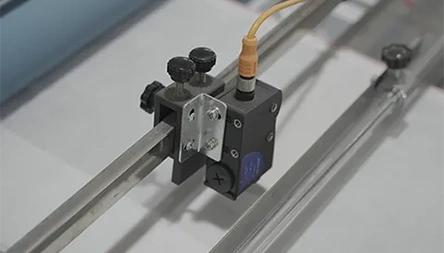

Web Guiding and Tension Control

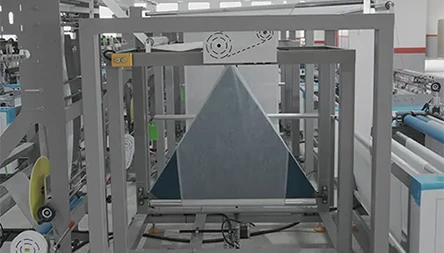

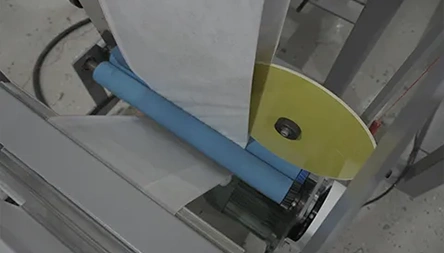

Bag Folding Unit
Bottom Forming Unit
Bottom Insert Positioning Unit

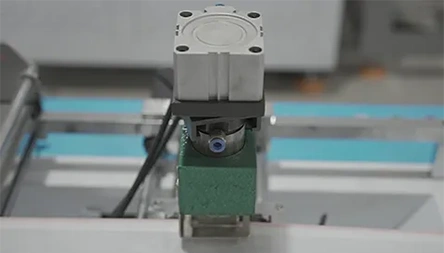

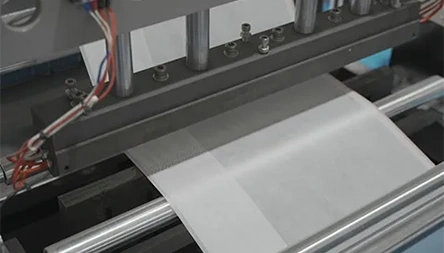

Ultrasonic Sealing Unit
Longitudinal Sealing Section

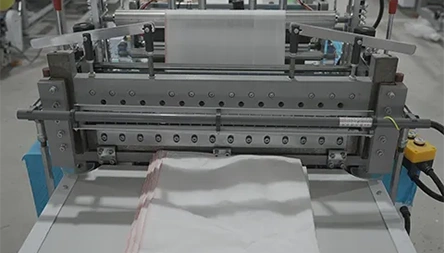

Cross-Sealing Section
Length Control and Feeding
Cutting Unit

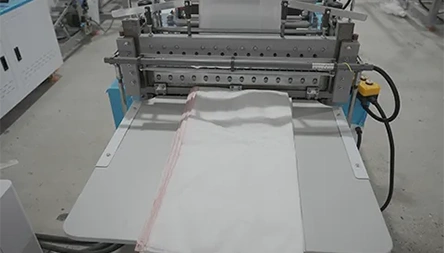

Bag Collection Unit

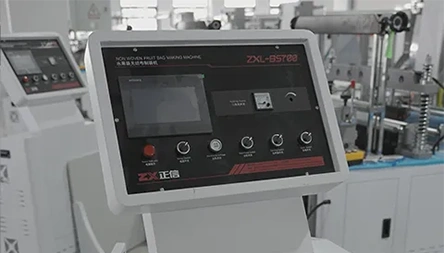

HMI Control Panel
Application Examples
Nonwoven Orchard Fruit Protection Bag
Custom Agricultural Covering Bag
What types of fruit protection bags can this machine produce?
A
The ZXL-BS700 series is designed for customized nonwoven fruit protection bags and other agricultural covering bags. The finished bag structure can be adapted according to the customer’s sample, including bag dimensions, folding layout, bottom form, sealing position and cutting length.
What materials can the ZXL-BS700 series process?
A
The machine processes roll-fed nonwoven material with a material weight of approximately 20–100 g/m². Final compatibility should be confirmed according to the fabric composition, surface treatment, softness, sealing performance and required fruit protection application.
What bag sizes can the machine produce?
A
Both models support bag widths from 100 to 1200 mm. The ZXL-BS700 produces bag heights from 200 to 580 mm, while the ZXL-BS800 supports heights from 200 to 680 mm. The final size range may also depend on the folding structure and customized bag design.
What is the difference between ZXL-BS700 and ZXL-BS800?
A
The ZXL-BS700 supports fabric rolls from 500 to 1300 mm wide and bag heights up to 580 mm, with installed power of 12 kW. The ZXL-BS800 supports fabric rolls from 500 to 1600 mm wide and bag heights up to 680 mm, with installed power of 15 kW. Both models have a rated speed of 40–60 pieces per minute.
Which parts of the machine can be customized?
A
Customization may include fabric roll width, bag width and height, folding method, bottom-forming structure, ultrasonic sealing layout, cutting length, opening position, collection method, electrical specification and integration with upstream or downstream equipment.
What production speed can be expected?
A
The rated production speed is 40–60 pieces per minute. Actual output depends on the bag size, material weight, folding complexity, sealing length, cutting setup and collection requirements.
What information is needed for a custom machine proposal?
A
Please provide a finished bag sample, photo or drawing, together with the bag width and height, material type and weight, roll width, folding and bottom structure, sealing position, required production speed, power supply and available factory space.
What installation and technical support are available?
A
Zhengxin can provide installation guidance, operating manuals, commissioning support, operator training, maintenance instructions and remote troubleshooting. On-site service, warranty coverage, spare parts and travel arrangements should be confirmed in the sales contract.
