3D Nonwoven Box Bag Making Machine with Online Handle Sealing
- Bag width
- 110-550mm
- Bag height
- 200-450mm
- Side gusset
- 80-220mm
- Handle length
- 350-620mm
Product Introduction
The Non-woven Box Bag is currently widely used in fields such as gifts, food, shopping, and fashion. It is the most mainstream type of packaging bag at present, characterized by environmentally friendly, aesthetic, and durable features.
Versatility and adaptability: up to 6 types of bag making
Daily production capacity: 90,000-100,000 pieces.
The world’s first 3D one-shot molding machine.
Obtained 12 invention patents and over 30 new patents.
Replace over 200 traditional sewing workers, with a quick mold change time of 20 minutes.
The equipment is highly efficient and stable.
Parameters
| MAIN TECHNICAL PARAMETERS | ZX-LT500 | ||
|---|---|---|---|
| Bag width | 110-550 mm | ① |  |
| Bag height | 200-450 mm | ② | |
| Side Gusset | 80-220 mm | ③ | |
| Handle length | 350-620 mm | / | |
| The ranges indicated in the parameters above represent the theoretical specifications for bags that this machine can produce. The actual bag specifications should be reasonably configured based on the specific debugging and operational conditions. | |||
| Roll width | 550-1160 mm | ||
| Output speed | 60-100 pcs/min | ||
| Bag material | 70-150 gsm | ||
| Handle material | 50-100 gsm | ||
| Power supply | 380V/50Hz | ||
| Total power | 50 kW | ||
| Air pressure | 1.0 MPa | ||
| Air flow | 1.2 m³/min | ||
| Overall dimensions | 11500×6850×2500 mm | ||
| Machine weight | 9500 Kgs | ||

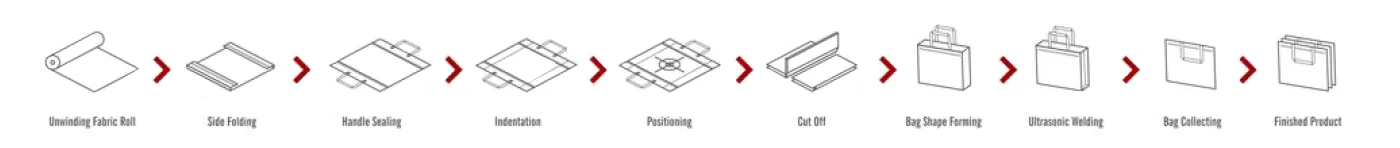

Bag Making Process
Fundamental Stages and Sequence of the Box Bag Making Process
Mechanical details

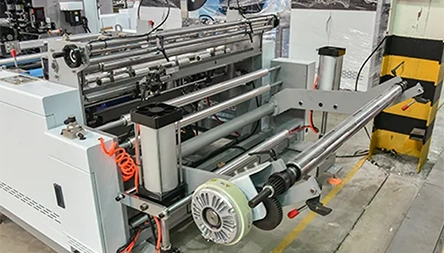

Feeding Part
Feeding rectifying deviation and edge fold adopts intelligent position adjustment, instead of traditional manual position adjustment by shaking the handwheel. Online soft handle sealing.

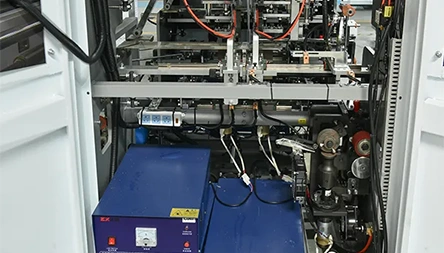

Handle Welding
Feeding rectifying deviation and edge fold adopts intelligent position adjustment, instead of traditional manual position adjustment by shaking the handwheel. Online soft handle sealing.

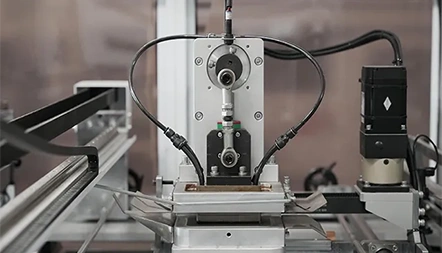

Main Machine Part
The creasing part moves back and forth with intelligent position adjustment. Driving the air knives to roll left and right can make finished bags more dimensional. Multifunctional mold, ultrasonic welding.

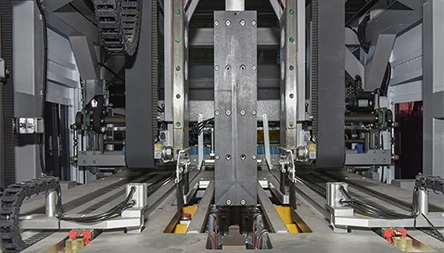

Folding & Transmit Part
Use conveyor belt to convey bags and fold.

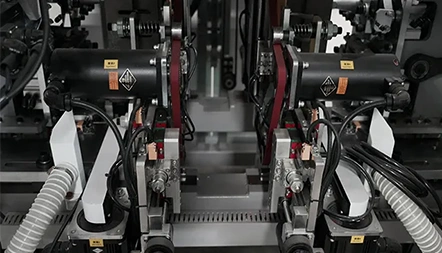

Bag Collecting Part
The new type bag collecting machine adopts a visual operation on the computer display screen.

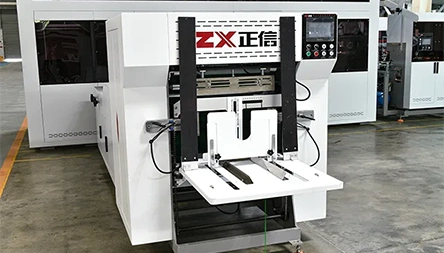

Bag Collecting Part
According to the need, the preset quality can be as many as a dozen, which is convenient for collecting neat bags.
Application Examples
Non-woven Box Bag
Lamination Box Bag
Insulated Box Bag
RPET/PLA Box Bag
What makes the ZX-LT500 a ''world's first'' machine?
A
It's the world's first machine to produce 3D laminated cooler bags in a single, one-shot molding process. This revolutionary technology integrates multiple production steps into one, eliminating traditional and inefficient sewing methods.
How does this machine impact our labor costs and efficiency?
A
A single ZX-LT500 can replace the output of over 200 traditional sewing workers. It achieves this with an incredible production speed of 60-100 bags per minute, dramatically reducing labor costs and management overhead.
What is the daily production capacity?
A
This highly efficient machine can produce an impressive 90,000 to 100,000 finished laminated cooler bags in a single day. This high volume is perfect for fulfilling large and urgent orders reliably.
How quickly can we switch between different bag designs?
A
Changeover is fast and efficient. The quick mold change system allows you to switch to a new bag design in approximately 20 minutes, maximizing your production uptime and flexibility for custom orders.
What are the key benefits of the one-shot 3D molding technology?
A
This patented process creates seamless, high-strength, and leak-proof bags in a single step. It ensures consistent, high-quality finished products with superior durability compared to stitched alternatives.
What types of bags can it produce?
A
It specializes in complex 3D bags like insulated cooler bags with gussets. It handles bag heights of 180-450mm, widths of 110-550mm, and can create side gussets of 80-220mm for a volumetric structure.
Is the technology proven and protected?
A
Yes. The machine's innovative technology is backed by 12 invention patents and over 30 utility model patents, guaranteeing you are investing in a unique, protected, and advanced manufacturing solution.
What are the utility requirements for installation?
A
The machine requires a 380V/50Hz power supply with a total power of 60kW. It also needs an air pressure supply of 1.0 MPa and an air flow of 1.2 m³/min for its pneumatic systems.
Do you offer support for such an advanced system?
A
Absolutely. We provide comprehensive technical support, including installation, training for your operators, and readily available spare parts to ensure your high-value investment operates at peak performance continuously.
