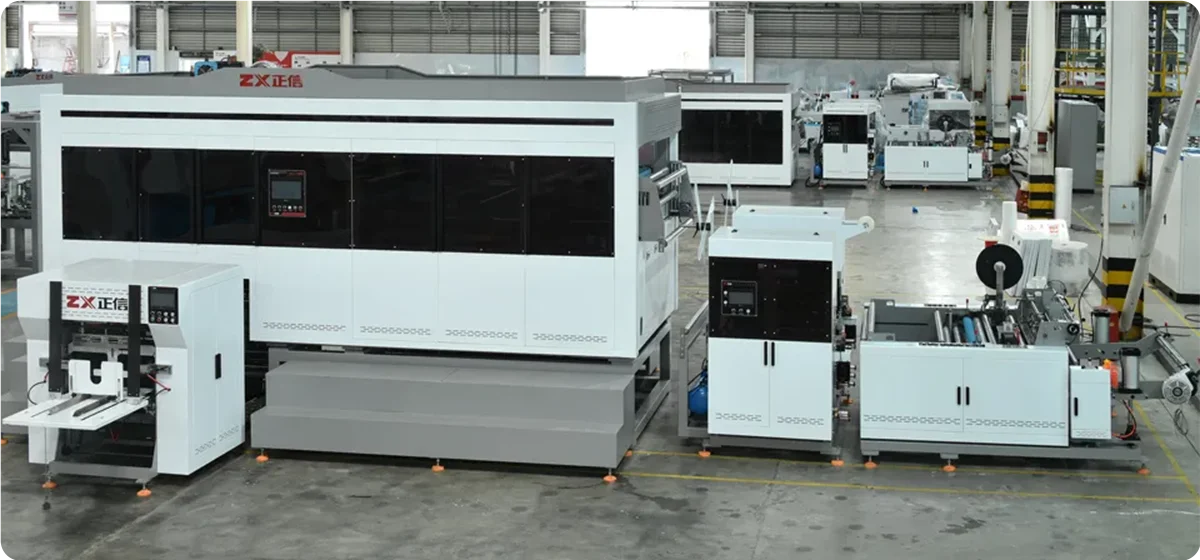

Vertical Folding Non-Woven Box Bag Making Machine
- Bag width
- 110-550mm
- Bag height
- 200-450mm
- Side gusset
- 80-220mm
- Handle length
- 350-620mm
Product Introduction
This model significantly reduces production costs and increases speed. Most importantly, it solves the common pain points associated with lightweight materials—specifically, the issues of messy collection and low efficiency during the manufacturing of box bags.
Additionally, it can process composite materials into more vibrant and aesthetically pleasing laminated box bags, which feature rich colors and an excellent surface texture. It can also process insulating materials into a box bag with thermal insulation functions, which are applied in the fields of food and takeaway.
Support the production of multiple raw materials
Stable and advanced production technology
Wide range of bag-making specifications
The vertical folding box bag machine is specifically designed to process low-grammage non-woven fabrics.
Parameters
| MAIN TECHNICIAN VARIABLES | ZX-LT500V | ZX-LT500 (Side Gusset 300mm) |
Bag Diagram | |
|---|---|---|---|---|
| Bag Width | 110-550 mm | 180-500 mm | ① |  |
| Bag Height | 200-450 mm | 200-450 mm | ② | |
| Side Gusset | 80-220 mm | 100-300 mm | ③ | |
| Handle Length | 350-620 mm | 350-620 mm | / | |
| The ranges indicated in the parameters above represent the theoretical specifications for bags that this machine can produce. The actual bag specifications should be reasonably configured based on the specific debugging and operational conditions. | ||||
| Fabric Roll Width | 550-1160 mm | 550-1160 mm |
Bags with a gusset width larger than the height can also be collected to make the bag more neat and aesthetic.
It supports lightweight non-woven fabric as low as 60 gsm, collecting to be neat and aesthetic. |
|
| Production Speed | 60-80 pcs/min | 35-60 pcs/min | ||
| Handle Material Thickness | 50-100 g/m² | 50-100 g/m² | ||
| Material Thickness | 60-120 g/m² | 60-120 g/m² | ||
| Voltage | 380V/50Hz | 380V/50Hz | ||
| Total Power | 50 kw | 50 kw | ||
| Air Pressure | 1.0 Mpa | 1.0 Mpa | ||
| Air Flow | 1.2 m/min | 1.2 m/min | ||
| Overall Dimension | 11000×4100×3420 mm | 11000×4100×3420 mm | ||
| Weight | 12000 kg | 12000 kg | ||
Bag Making Process
Fundamental Stages and Sequence of the Box Bag Making Process
Mechanical details

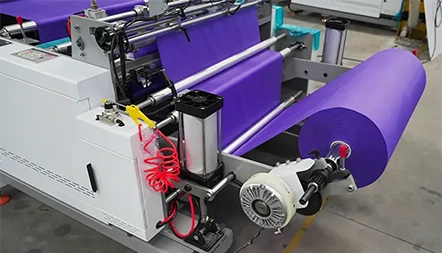

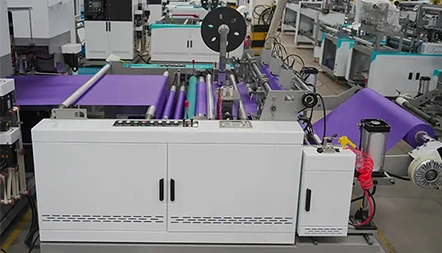

Feeding Part
Feeding Part

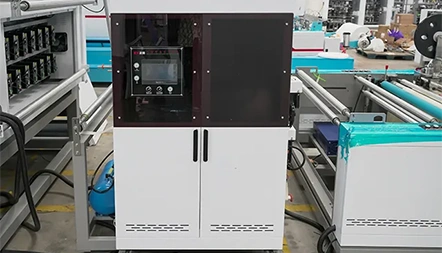

Handle Welding Part
Handle Welding Part

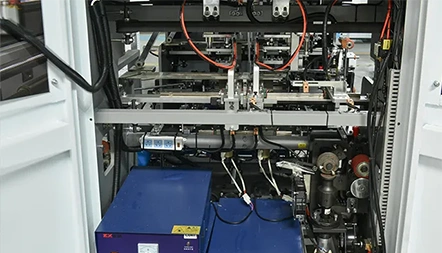

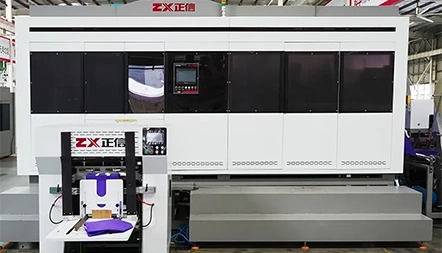

Main Machine Part
Main Machine Part

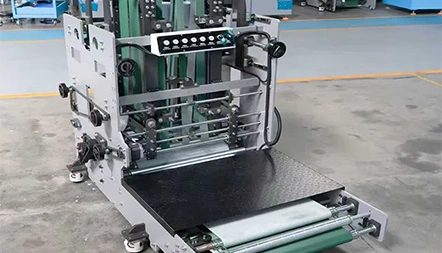

Bag Vertical Foling Part

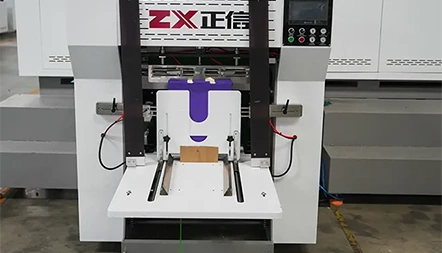

Bag Collecting Part
Bag Collecting Part
Application Examples
Non-woven Box Bag
Insulated Box Bag
Lamination Box Bag
RPET/PLA Box Bag
What is the key advantage of the ZX-LT500V's vertical design?
A
The vertical, integrated design allows for the automatic production of complex 3D bags in a single, continuous process. It achieves precise molding for superior structural integrity, eliminating the need for multiple machines or manual assembly stages.
How does this machine reduce our labor costs?
A
It is a fully automated system that handles feeding, molding, and handle attachment autonomously. This significantly reduces the number of operators required, cutting labor costs and minimizing human error for consistent output.
What types of bags can it produce?
A
It specializes in high-quality flat-bottom or box-bottom bags with integrated side gussets (80-220mm). It produces bags with a height of 180-450mm, a width of 180-550mm, and adds handles ranging from 350-600mm in length.
How efficient is the production speed?
A
The machine operates at a high speed of 60-80 finished bags per minute. This high output ensures you can meet large order volumes efficiently, providing a fast return on your investment.
What material specifications does it support?
A
It works with main non-woven fabrics from 70-150g/m² and handle materials from 50-100g/m². This covers a wide range of common weights, allowing for the production of both standard and heavier-duty, more durable bags.
What are the installation requirements?
A
The machine requires a 380V/50Hz power supply with a total power of 50kW. It also needs a compressed air supply of 1.0 MPa and a flow of 1.2 m³/min. Please ensure your facility can meet these utility requirements.
How does it ensure consistent and precise bag quality?
A
Advanced PLC controls and precision engineering guarantee accurate cutting, sealing, and forming on every cycle. This results in uniform, professional-looking 3D bags with strong seals and perfect dimensions, batch after batch.
Is the machine built for stable, long-term operation?
A
Yes. With a robust weight of 9000kg and a heavy-duty construction, it is designed for 24/7 industrial operation. This ensures remarkable stability, reliability, and minimal downtime in demanding production environments.
Do you offer training for operating this advanced equipment?
A
Absolutely. We provide comprehensive on-site installation, commissioning, and detailed training for your operators and maintenance team. This ensures you can run the machine at peak efficiency and perform basic troubleshooting.
