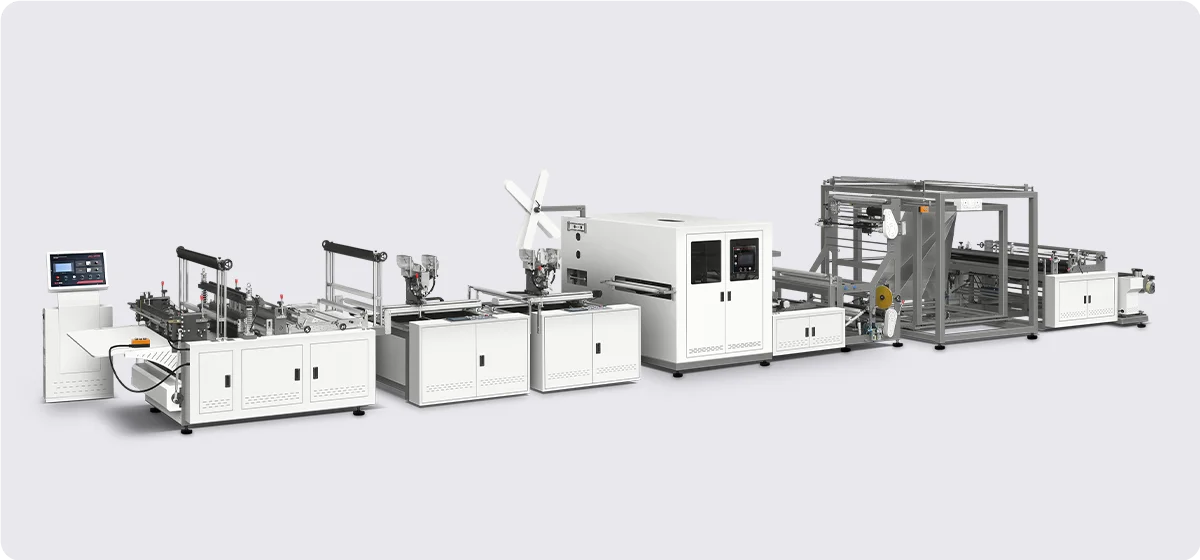

Custom Nonwoven Bag Making Machine with Online Snap Button Attaching
- Fabric roll width
- 500-1300mm
- Production speed
- 40-60pcs/min
- Bag width
- 100-800mm
- Bag height
- 200-580mm
Product Introduction
This machine is suitable for non-woven fabrics and can process various specifications and shapes of non-woven bags, flat pockets, hand-held flat pockets, vest bags, drawstring bags, etc. The machine integrates mechanical and electrical components, uses an LCD touchscreen for operation, and is equipped with a stepper cloth-type fixed length, photoelectric tracking, computer automatic positioning, computer automatic edge correction, and accurate, stable, and self-counting. It can set technical alarms, automatic punching, automatic ironing handles, and other industrial control devices, making the finished products sealed firmly, cut beautifully, and efficient. It is an excellent environmentally friendly bag-making equipment that you can use with confidence.
Process flow: Roll material - fold edge - threading rope - hot sealing - fold in half - insert edge - positioning - punching - hot sealing - cutting - collecting finished products.
Parameters
| MAIN TECHNICIAN VARIABLES | ZXL-DS700 | ZXL-DS800 |
|---|---|---|
| Fabric Roll Width | 500-1300mm | 500-1600mm |
| Production Speed | 40-60pcs/min | 40-60pcs/min |
| Bag Height | 200-580mm | 200-680mm |
| Bag Width | 100-800mm | 100－800mm |
| Handle Length | 380-600mm | 380-600mm |
| Handle Material Thickness | 50-100g/m² | 50-100g/m² |
| Material Thickness | 50-100g/m² | 50-100g/m² |
| Voltage | 380V/220V | 380V/220V |
| Total Power | 18kw | 20kw |
| Overall Dimension (L×W×H) | 14000×2050×1900mm | 14500×2350x2100mm |
| Weight | 3500kg | 3800kg |
Application Examples
Button Non Woven Bag
What power supply is needed?
A
The machine supports both 380V and 220V power supply options, with a total power of 23kW. This dual voltage capability offers easier adaptation to different factory electrical setups around the world.
Is the machine easy to set up and operate?
A
We provide installation guidance and training for quick setup. The automated controls simplify operation, and minimal manual adjustment is needed, making it user-friendly even for operators with basic technical skills.
What support comes after purchase?
A
We offer reliable technical support, remote troubleshooting, and readily available spare parts. Our service team aims to maximize your machine's uptime and ensure long-term stable performance.
