Nonwoven Fruit Protection Bag Machine with Wire Insertion
- Bag width
- 100-800 mm
- Bag height
- 200-580 mm
- Material weight
- 20-100 g/m²
- Production speed
- 40–100 pcs/min
Product Introduction

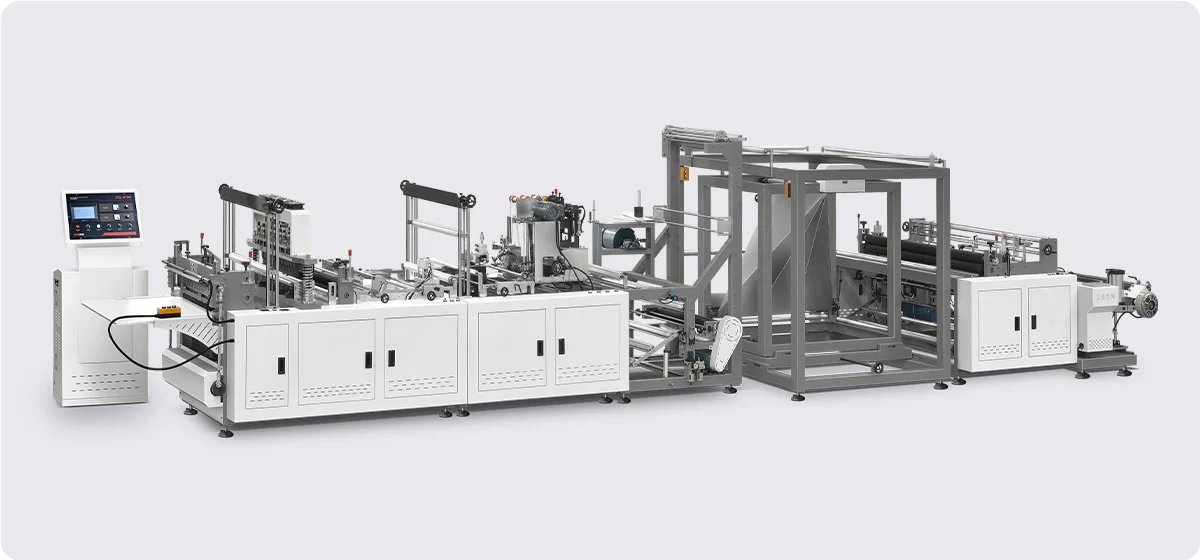

The ZXL-BS2 series is a customized nonwoven bag making machine developed for producing fruit protection bags with an integrated wire insertion process. The inserted wire helps the finished bag maintain its opening shape and supports easier positioning or closure during orchard use.
The machine converts roll-fed nonwoven material through feeding, folding, wire positioning, sealing, length control, cutting and collection. It processes nonwoven materials from 20 to 100 g/m² at rated speeds of 40–100 pieces per minute.
The ZXL-BS2-700 supports fabric rolls from 500 to 1300 mm wide and bag heights up to 580 mm. The wider ZXL-BS2-800 supports roll widths up to 1600 mm and bag heights up to 680 mm. Both models produce bag widths from 100 to 800 mm.
Bag dimensions, wire diameter, wire length, insertion position, folding structure and sealing layout can be configured according to the customer’s finished bag sample and orchard application.
Parameters
| MAIN TECHNICIAN VARIABLES | ZXL-BS2-700 | ZXL-BS2-800 |
|---|---|---|
| Fabric Roll Width | 500–1,300 mm | 500–1,600 mm |
| Production Speed | 40-100 pcs/min | 40-100 pcs/min |
| Bag Height | 200-580 mm | 200-680 mm |
| Bag Width | 100-800 mm | 100-800 mm |
| Material Weight | 20-100 g/m² | 20-100 g/m² |
| Power Supply | 380V/220V | 380V/220V |
| Total Power | 12 kw | 15 kw |
| Overall Dimension (L×W×H) | 9500×2050×1900mm | 10000×2350×2100mm |
| Weight | 2,200 kg | 2,500 kg |
Wire Configuration Options
- Wire material
- Wire diameter
- Wire length
- Wire insertion position
- Distance from bag opening
- Single-wire or double-wire layout
- Wire fixing method
- Finished opening shape
Wire specifications are matched to the finished fruit protection bag design. Configuration may include wire material, diameter, length, insertion position, distance from the bag opening and the required opening shape.
For technical evaluation, provide the finished bag sample or drawing, wire sample or specification, nonwoven material weight, bag dimensions and required production output.
Application Examples
Nonwoven Fruit Protection Bag with Inserted Wire
Wire-Reinforced Orchard Fruit Protection Bag
What is the wire insertion function used for?
A
The wire insertion function places a shaped wire into a specified position of the fruit protection bag. The wire helps the finished bag maintain its opening shape and can support easier positioning or closure during orchard use.
What nonwoven materials can the ZXL-BS2 series process?
A
The machine is designed for roll-fed nonwoven material from approximately 20 to 100 g/m². Final compatibility should be confirmed according to the material composition, stiffness, breathability, sealing performance and required fruit protection application.
What bag sizes can the machine produce?
A
Both models support bag widths from 100 to 800 mm. The ZXL-BS2-700 produces bag heights from 200 to 580 mm, while the ZXL-BS2-800 supports bag heights from 200 to 680 mm. Final size capability also depends on the folding and wire insertion layout.
What is the difference between ZXL-BS2-700 and ZXL-BS2-800?
A
The ZXL-BS2-700 supports fabric rolls from 500 to 1300 mm wide and bag heights up to 580 mm, with installed power of 12 kW. The ZXL-BS2-800 supports fabric rolls up to 1600 mm wide and bag heights up to 680 mm, with installed power of 15 kW.
Can the wire specification and position be customized?
A
Yes. Wire material, diameter, length, insertion position and distance from the bag opening can be evaluated according to the finished bag sample. The final configuration depends on the required opening shape and bag application.
What production speed can be expected?
A
The rated production speed is approximately 40–100 pieces per minute. Actual output depends on the bag dimensions, material weight, wire length, insertion position, sealing cycle and collection requirements.
What information is required for a custom machine proposal?
A
Please provide a finished bag sample, photo or drawing, together with the bag width and height, nonwoven material type and weight, roll width, wire material and dimensions, wire position, required production speed and power supply.
What installation and technical support are available?
A
Zhengxin can provide installation guidance, commissioning support, operating manuals, operator training, maintenance instructions and remote troubleshooting. On-site service, warranty terms and spare-parts arrangements should be confirmed in the sales contract.
