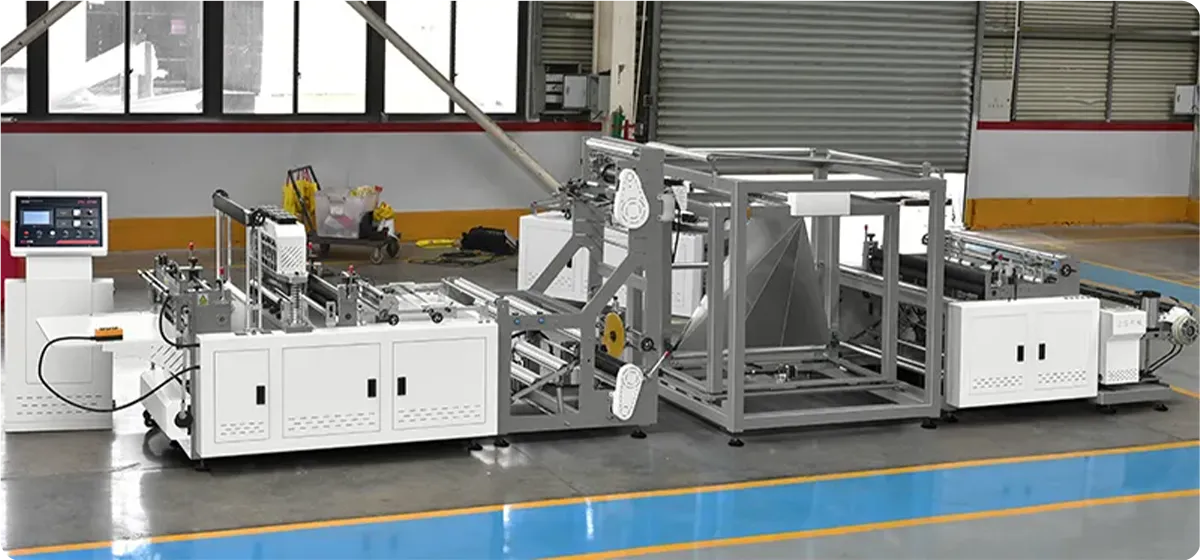

Automatic Non Woven Flat Bag Making Machine
- Bag width
- 100-800mm
- Bag height
- 200-580mm
- Bag material
- 30-120gsm
- Roll width
- 500-1300mm
Product Introduction
Ultrasonic Sealing Technology.
Efficient Automatic Production.
Low production cost.
Eco-protection&Energy-saving.
Stability and reliability.
Scalability and economy.
Parameters
| MAIN TECHNICIAN VARIABLES | ZXL-B700 | ZXL-B800 | Bag Diagram | |
|---|---|---|---|---|
| Bag Width | 100-800 mm | 100-800 mm | ① |  |
| Bag Height | 200-580 mm | 200-680 mm | ② | |
| The ranges indicated in the parameters above represent the theoretical specifications for bags that this machine can produce. The actual bag specifications should be reasonably configured based on the specific debugging and operational conditions. | ||||
| Fabric Roll Width | 500-1300 mm | 500-1600 mm |  |
|
| Production Speed | 40-120 pcs/min | 40-120 pcs/min | ||
| Material Thickness | 30-120 g/m² | 30-120 g/m² | ||
| Voltage | 380V/220V | 380V/220V | ||
| Total Power | 12 kw | 15 kw | ||
| Overall Dimension | 8000×2050×1900 mm | 8500×2350×2100 mm | ||
| Weight | 2200 kg | 2800 kg | ||

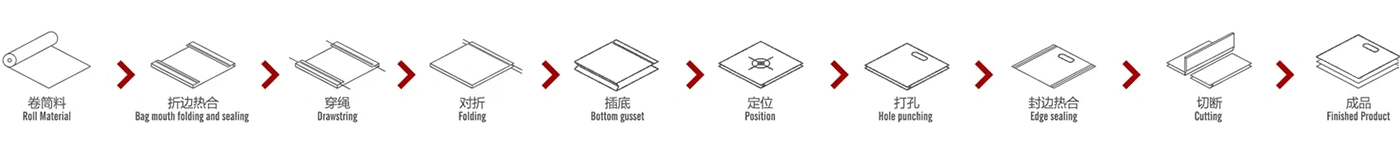

Bag Making Process
Fundamental Stages and Sequence of the Box Bag Making Process
Mechanical details

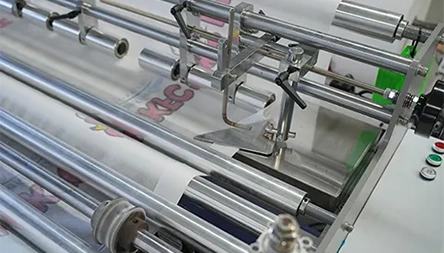

Feeding Part
Max width of unwinding 1300MM, max diameter of unwinding 1000mm, Auto feeding, Photocell eye tracking, Auto rectifying deviation, Magnet powder tension control, folding sealing by ultrasonic welding, custom-made round embossing mould.

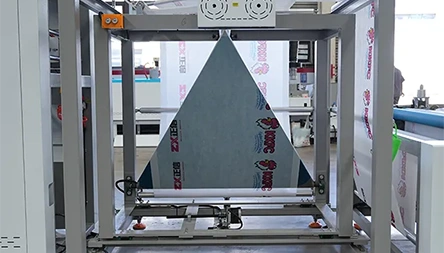

Folding Part
Non-woven fabric cross-folding device with easy adjustment, making the bag mouth neat and tidy, even without moving the whole machine.

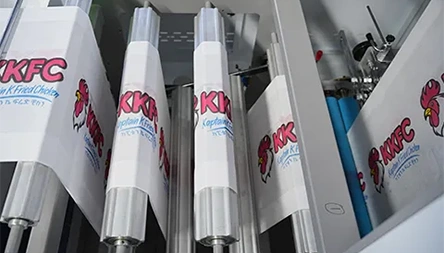

Gusset/Bottom Insert Part
Feeding and computer-controlled length adjustment by stepping motor, photocell eye tracking, bottom and side gusset making, and ultrasonic side sealing of the T-shirt bag.

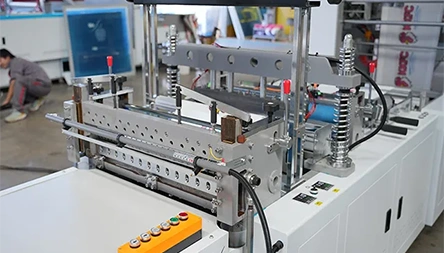

Cutting Part
The function of the bag is sealing, cutting, and collecting. Adjustable photoelectric sensor for printing color mark tracking, and a durable cold cutter.

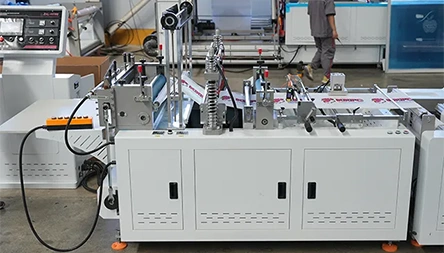

Bag Sealing
Adopts two Taiwan brand ultrasonic welding systems (horn 300mm), different specs of ultrasonic can be used to meet different non-woven fabric GSM.
Application Examples
Non woven D-cut bag
Non woven shoes bag / Drawstring bag
What is the key feature of the ZXL-B700 flat-bottom bag machine?
A
It uses ultrasonic sealing technology for strong, clean seams without thread or glue. This ensures durable flat-bottom bags, reduces energy consumption, and is ideal for eco-friendly and high-quality bag production.
How efficient is the ZXL-B700 in daily production?
A
With speeds ranging from 40 to 120 pieces per minute, this machine significantly increases output while maintaining consistent quality. It helps meet large orders efficiently and reduces labor costs.
What types of bags can it produce?
A
It makes flat-bottom bags with widths from 100mm to 800mm and heights from 200mm to 580mm. These bags are widely used in shopping, gift, and packaging applications due to their stability and large capacity.
Is the machine environmentally friendly?
A
Yes. The ultrasonic process consumes less energy, produces no chemical waste, and doesn't require adhesives. It supports sustainable manufacturing by using recyclable non-woven materials.
What material thickness is compatible?
A
It handles non-woven fabrics from 30g/m² to 120g/m², offering great flexibility for producing both lightweight and heavy-duty bags without compromising seal strength or appearance.
How does it help reduce operating costs?
A
The fully automated operation saves on labor, and ultrasonic technology lowers energy consumption. Its high-speed performance and minimal material waste further enhance cost-effectiveness.
What power options are available?
A
The machine supports both 380V and 220V power supply, with a total power of 12kW. This allows for easier installation in different regions and smaller workshops with limited voltage.
Is the ZXL-B700 easy to use?
A
It features an automated control system for simple operation. We provide installation guidance and training to ensure quick setup and smooth daily production.
What after-sales service do you offer?
A
We provide lifelong technical support, online troubleshooting, and access to original spare parts. Our team ensures high machine availability and long-term reliability for your investment.
