Non Woven Side Gusset Bag Making Machine with Online Handle
- Bag width
- 200-400mm
- Bag height
- 300-700mm
- Side gusset
- 60-200mm
- Handle length
- 380-600mm
Product Introduction
This machine is capable of producing a wide range of non-woven bags in various shapes and sizes, making it applicable to a broader market sector.
Additionally, the non-woven bag is currently widely used in fields such as gifts, food, shopping, and fashion. It is the most mainstream type of packaging bag at present, characterized by environmentally friendly, aesthetic, and durable features.
Parameters

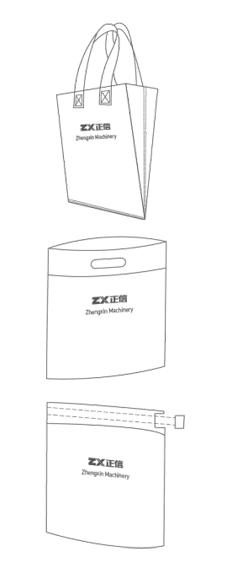

| MAIN TECHNICIAN VARIABLES | ZXL-G700 | ZXL-G800 | Bag Diagram | |
|---|---|---|---|---|
| Bag Width | 200-400 mm | 200-500 mm | ① |  |
| Bag Height | 300-700 mm | 300-700 mm | ② | |
| Side Gusset | 60-200 mm | ③ | ||
| Handle Length | 380-600 mm | 380-600 mm | / | |
| The ranges indicated in the parameters above represent the theoretical specifications for bags that this machine can produce. The actual bag specifications should be reasonably configured based on the specific debugging and operational conditions. | ||||
| Fabric Roll Width | 500-1150 mm | 500-1600 mm |  |
|
| Production Speed | 60-100 pcs/min | 60-80 pcs/min | ||
| Handle Material Thickness | 50-100 g/m² | 50-100 g/m² | ||
| Material Thickness | 50-100 g/m² | 50-100 g/m² | ||
| Side Gusset | 60-200 mm | 60-300 mm | ||
| Voltage | 380V/220V | 380V/220V | ||
| Total Power | 18 kw | 20 kw | ||
| Overall Dimension | 12000×2050×2100 mm | 12400×2400×2200 mm | ||
| Weight | 4200 kg | 5000 kg | ||
Bag Making Process

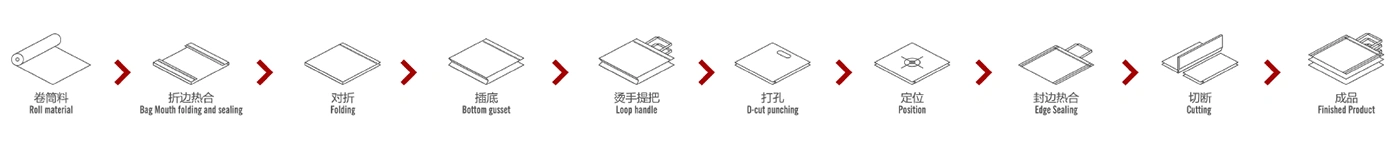

Fundamental Stages and Sequence of the Box Bag Making Process

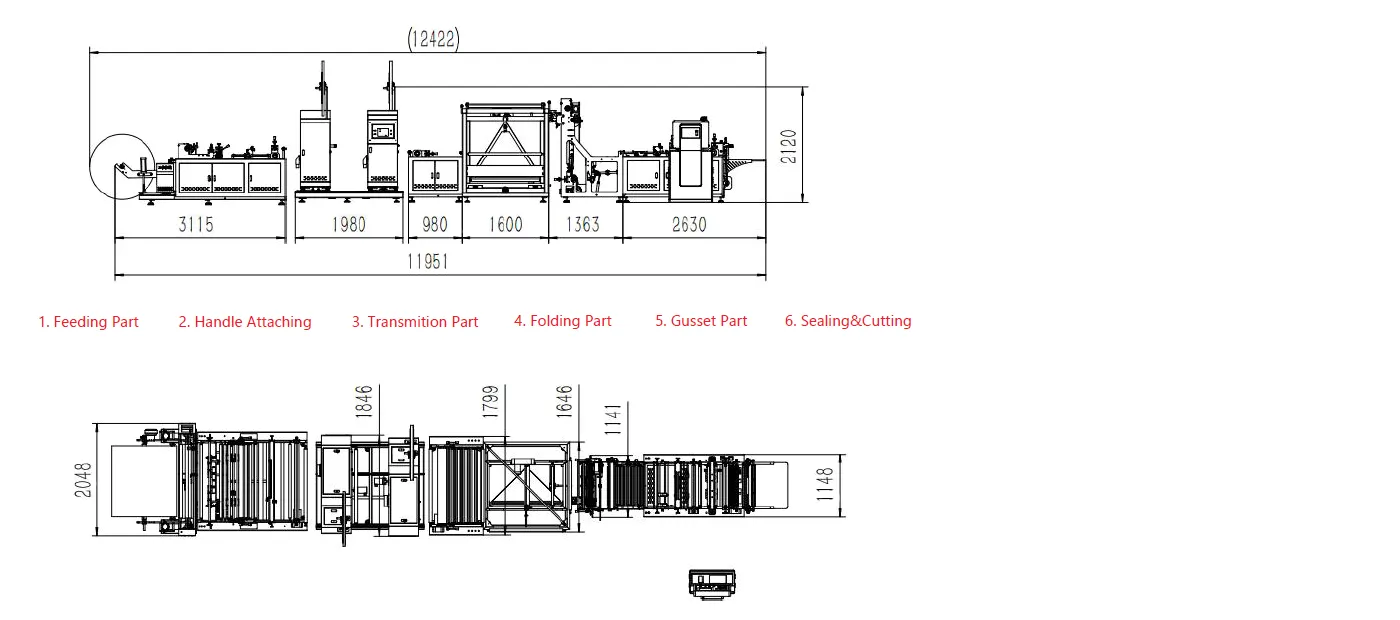

Machine Diagram
Mechanical details
Fabric roll Feeding part

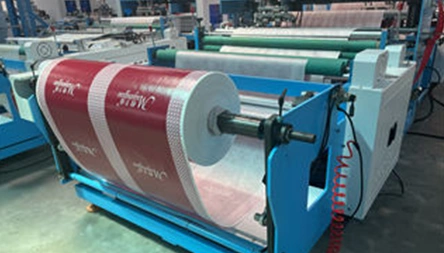

Auto-loading material roll (lifted by cylinders), an inflatable shaft to fix the fabric roll when the machine is working. Auto rectifying deviation system(EPC box and web guider). Bag mouth folding and sealing by ultrasonic welding, Photocell eye for printing colour mark tracking, Custom-made sealing mould is available.

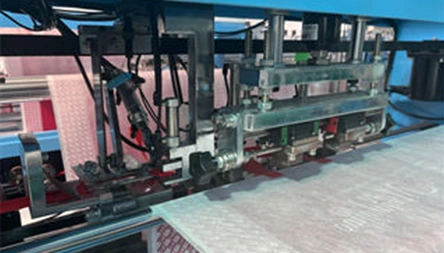

Online handle attaching
Handle sealing and attaching by ultrasonic welding, Adjusted by touch screen, man-machine interface: touch screen, Motion control: PLC.
Fabric feeding part

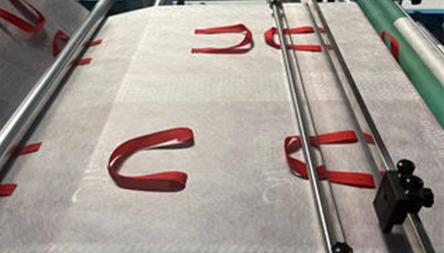

Stepping motor and rubber roller for fabric feeding.
Non woven fabric cross folding part

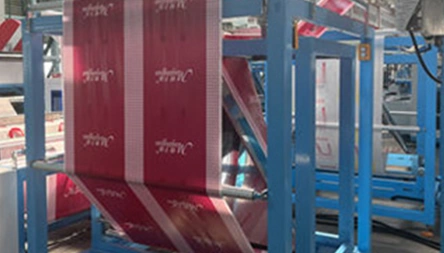

Stainless steel (triangular form) for fabric cross folding, Manual web guider.
Bag bottom / side Gusset part

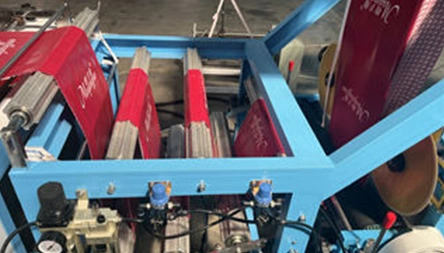

Feeding and computer length fixed by stepping motor, photocell eye tracking, bottom and side gusset making, and the side sealing of T-shirt bag by ultrasonic.
Rewinding waste raw material part

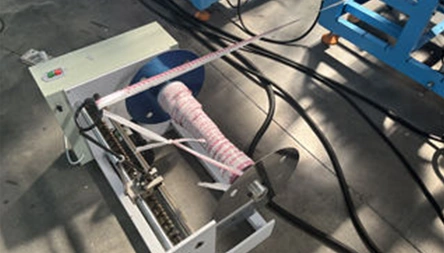

Recycling waste fabric.

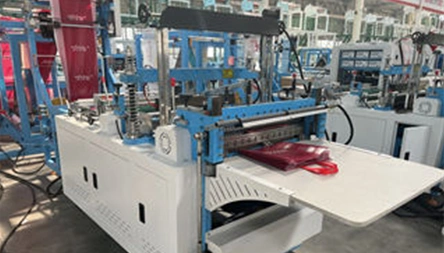

Bag sealing and cutting part
Adjustable photoelectric sensor for printing color mark tracking, Online D-cut punching, drawstring bag punching, Bag side sealing by ultrasonic welding system, static eliminator device.

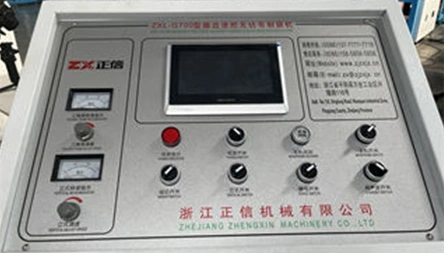

Operation Computer
Integrate all the electricity elements, adopts split-type design and PLC motion control as well as touch screen man-machine interface, easy operation and maintaining.
