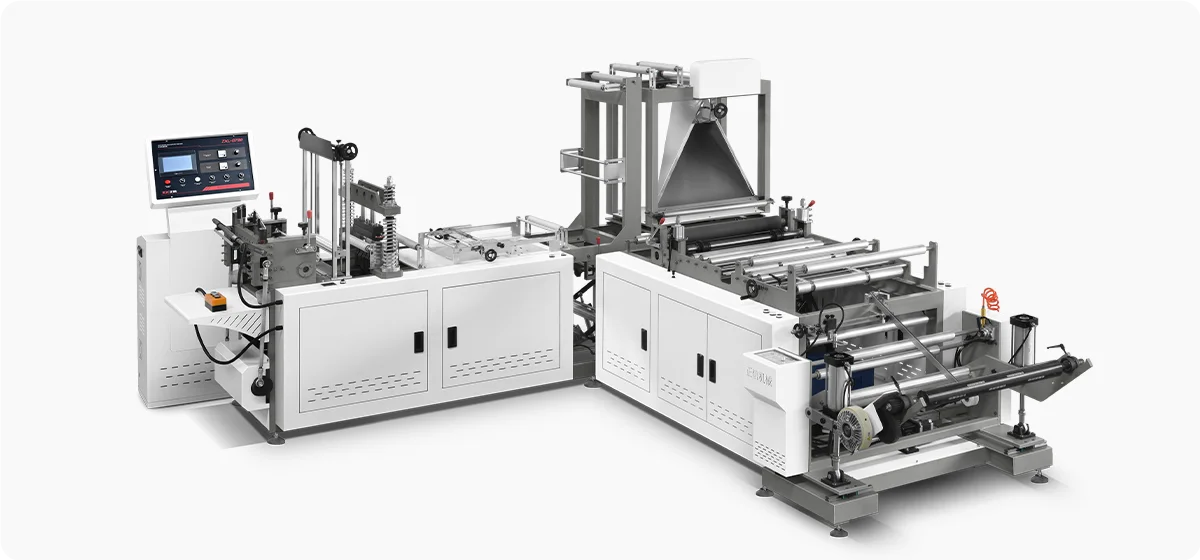

Small Non Woven Bag Making Machine for Herbal, Tea and Seedling Bags
- Bag width
- 50-300mm
- Bag height
- 50-300mm
- Production speed
- 80-200pcs/min
- Material thickness
- 20-100g/m²
Product Introduction
This machine adopts mechanical, electrical, optical, and pneumatic integration technology, suitable for non-woven fabric, different specs of flat bag, bottom/side gusset bag, and drawstring bags, etc. (used for Chinese medicine bag, tea bag, seeding bag, etc.) can be made by this machine.
This machine adopts a Taiwan PLC touch screen, which can be edited.
Auto counting and stopping when setting numbers freely.
High-voltage static processor and auto constant-temperature heating controller.
Equipped with a stepping motor (computer-fixed length), manual unwinding magnetic powder tension controller, auto rectifying deviation, photoelectric tracking, printing color mark track orientation, auto counting and alarming, auto punching, etc., which make it accurate and stable.
All aspect of the bags adopts thermal bonding by ultrasonic welding, such as bag edge folding, side sealing, etc, which makes the machine fast and easy to operate, with firm sealing, beautiful and decent.
Parameters
| MAIN TECHNICIAN VARIABLES | ZXL-350 |
|---|---|
| Bag width | 50-300mm |
| Bag height | 50-300mm |
| Fabric Roll Width | 100-650mm |
| Production Speed | 80-200pcs/min |
| Material Thickness | 20-100g/m² |
| Voltage | 380V/220V |
| Total Power | 8kw |
| Overall Dimension | 3200×3000×1800mm |
| Weight | 1400kg |
Mechanical details

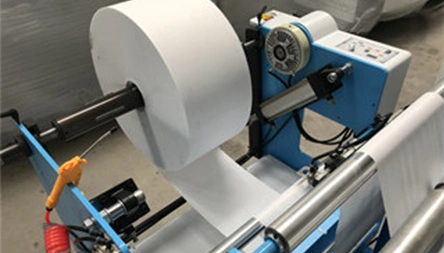

Fabric roll Feeding part
Max width of unwinding 750mm, Photocell eye tracking, Auto rectifying deviation, Magnet powder tension control,folding sealing by ultrasonic welding, custom made round embossing mould.

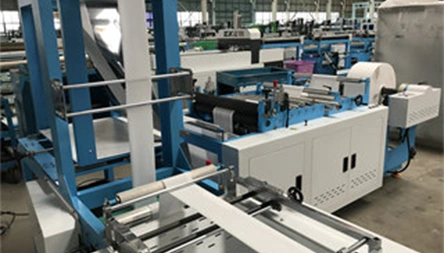

Folding part + Bag making part
The function of non-woven fabric cross-folding, Bag side sealing , cutting, collection. adjustable photoelectric sensor for printing color mark tracking.

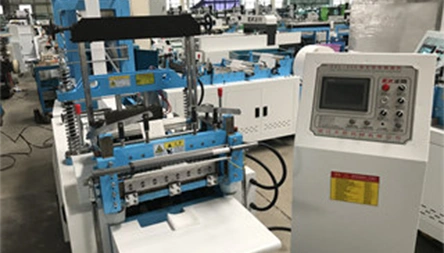

Operation Computer
Application Examples
Traditional Chinese Medicine Bag
Seedling Bag
Seedling Bag
Tea Bag
