Four-Color High-Speed Nonwoven Flexo Printing Machine
- Max. Roll width
- 1200mm
- Max Roll Diameter
- 1000mm
- Max. Printing Width
- 1160mm
- Printing Length
- 220-1000mm
Product Introduction
The ZXH-C4 series is a four-color roll-to-roll flexographic printing machine designed for printing logos, text and multi-color graphics on nonwoven fabric before bag converting. It applies up to four colors in one production pass, making it suitable for packaging designs that require more detailed branding and richer color combinations than single- or two-color printing.
The series is available for maximum fabric roll widths of 1200, 1400 and 1600 mm, with corresponding maximum printing widths of 1160, 1360 and 1560 mm. Printing speed is adjustable from 10 to 60 m/min, while the printing length range of 220–1000 mm supports different bag dimensions and repeat patterns.
The machine is suitable for nonwoven shopping bags, promotional bags, gift bags and other roll-fed nonwoven products requiring four-color graphics. Model selection should be based on the required fabric width, printing width, repeat length, pattern complexity and production speed.
Parameters
| MAIN TECHNICIAN VARIABLES | ZXH-C41200 | ZXH-C41400 | ZXH-C41600 |
|---|---|---|---|
| Max Fabric Roll Width | 1200mm | 1400mm | 1600mm |
| Max Fabric Roll Diameter | 1000mm | 1000mm | 1000mm |
| Max Printing Width | 1160mm | 1360mm | 1560mm |
| Printing Length | 220-1000mm | 220-1000mm | 220-1000mm |
| Plate Thickness | 2.28/3.94mm | 2.28/3.94mm | 2.28/3.94mm |
| Printing Speed | 10－60m/min | 10-60m/min | 10-60m/min |
| Voltage | 380V | 380V | 380V |
| Total Power | 18kw | 20kw | 22kw |
| Overall Dimension | 4600×2200×2400mm | 4600×2400×2400mm | 4600×2600×2400mm |
| Weight | 3000kg | 3200kg | 3400kg |
Mechanical details

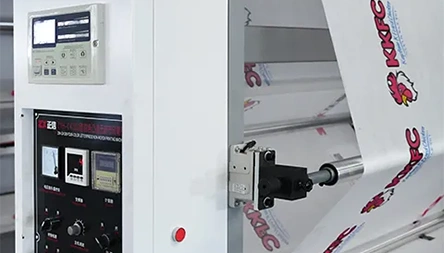

Correction system

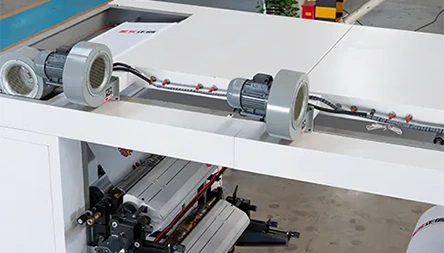

Drying part device

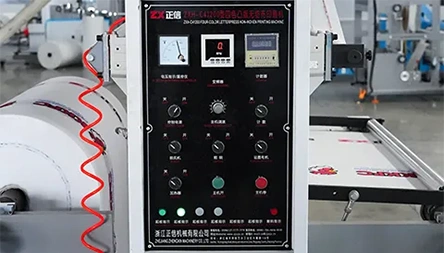

Main power distribution system

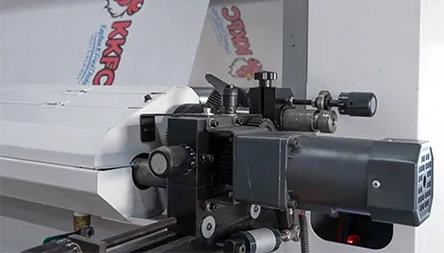

Ink Transport Motor
Printing Cylinder

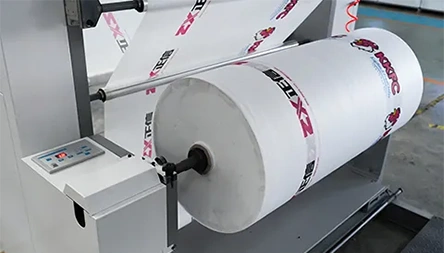

Rewinding tension system

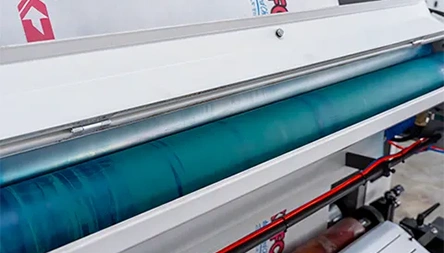

Rubber roller

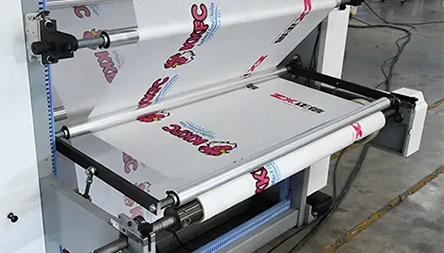

Traction device

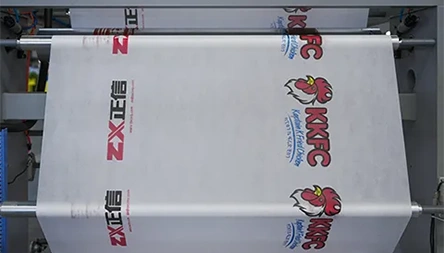

Flexographic printing effect
Application Examples
Four-Color Flexo Printing
Printed Nonwoven Shopping Bag
Multi-Color Nonwoven Bag Printing
Nonwoven Logo and Graphic Printing
What are the main advantages of the ZXH-C41200 printing machine?
A
The ZXH-C41200 applies up to four colors in one pass, reducing repeated material handling and improving production efficiency. It is suitable for logos, text and multi-color graphics that require consistent registration across the printed web.
What materials and widths can the ZXH-C41200 handle?
A
This machine supports non-woven fabrics with a maximum roll width of 1200mm and a maximum roll diameter of 1000mm. The maximum printing width is 1160mm, making it suitable for wide-format material printing.
How fast can the ZXH-C41200 operate?
A
The printing speed ranges from 10 to 60 meters per minute, allowing for high-volume production while maintaining consistent print quality and color accuracy.
What power requirements does the ZXH-C41200 have?
A
It operates on a 380V power supply with a total power consumption of 18kW. Ensure your facility meets these specifications for smooth operation.
Is the ZXH-C41200 certified for international safety standards?
A
Yes, our company holds ISO9001 quality certification, and the machine complies with CE international safety standards, ensuring reliable and safe performance.
What technical support comes with the machine?
A
We provide full technical support, including installation, training, and maintenance. Our team of senior technicians ensures optimal machine operation and quick troubleshooting.
How does this machine improve our production efficiency for non-woven bags?
A
It significantly boosts output with high-speed printing up to 60m/min and efficient multi-color overprinting in a single pass. This automation reduces manual labor and time, allowing you to fulfill large orders faster and more profitably.
Is the ZXH-C41200 suitable for short runs and frequent design changes?
A
Yes. With a printable length range of 220-1000mm and the ability to handle different plate thicknesses, it offers great flexibility. It’s designed for efficient changeovers, making it practical for both long runs and shorter, customized orders.
What kind of after-sales support and warranty do you provide?
A
We offer comprehensive support including installation, on-site training, and troubleshooting. Our service team ensures minimal downtime. The machine comes with a standard warranty, with extended options available for peace of mind.
