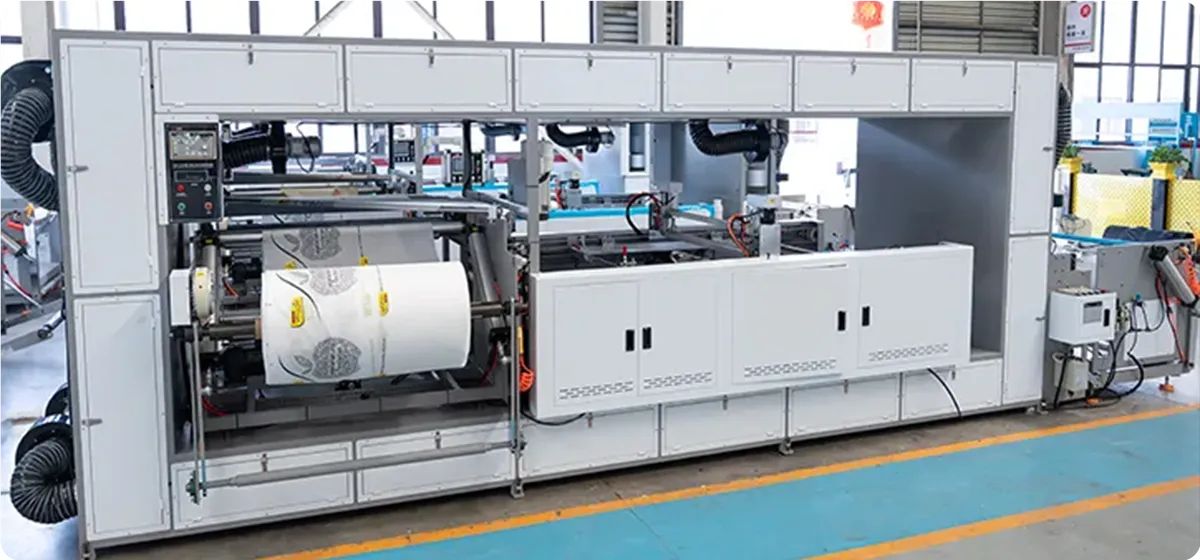

Automatic Single-Color Nonwoven Screen Printing Machine
- Max. roll width
- 1250mm
- Color count
- One color
- Max printing size
- 1100×1200mm
- Printing mode
- Continuous or intermittent
Product Introduction
Non-woven screen printing is a widely used pattern transfer process. The technology works by using a squeegee to exert pressure, forcing ink through a patterned mesh screen onto the non-woven fabric surface. It is suitable for high-quality non-woven materials and adaptable to substrates of various shapes and sizes. With relatively low plate-making costs, it is an ideal solution for large-volume orders.
Automatic feeding, printing, drying, and collecting, saving labor and overcoming the constraints of weather conditions.
Pressure equalization and a thick ink layer adapt to the printing of high-grade non-woven products.
Various sizes of screen frame plates are available.
Multiple patterns can be printed simultaneously when doing large format printing, which largely improves the work efficiency.
The minimum effective pattern printing gap is as low as 10 mm before and after full-pattern printing, largely reducing the material consumption.
The driving of the whole machine and chromatography systems adopts servo motor control, ensuring the printing precision.
The printing position is accurate and stable. It can be used together with transverse cutting, slitting, and a non-woven bag making machine, which largely improves the production efficiency.
Parameters
| MAIN TECHNICIAN VARIABLES | ZXH-A1200 |
|---|---|
| Max. roll width | 1250 mm |
| Color count | One color |
| Max printing size | 1100×1200mm |
| Printing mode | Continuous or intermittent |
| Drying length | 30m |
| Applicable material | Non-woven fabric |
| Printing surface | Round roller mirror |
| Material thickness | 60-150 g/m² |
| Printing speed | 1500-4000 m/hour |
| Voltage | 380V/50Hz |
| Total power | 26kW |
| Overall dimension | 8000×2000×2300mm |
| Weight | 4800 kg |
Mechanical details

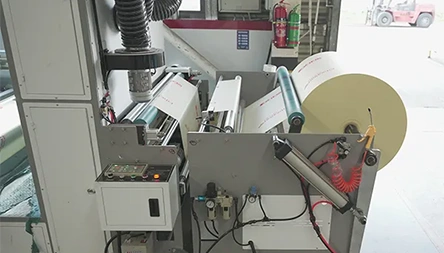

Feeding Part

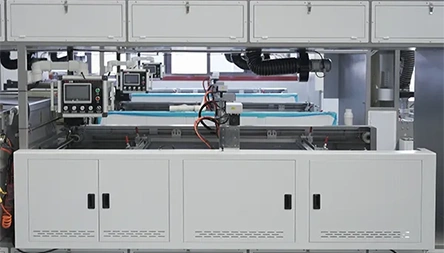

Screen Printing Part

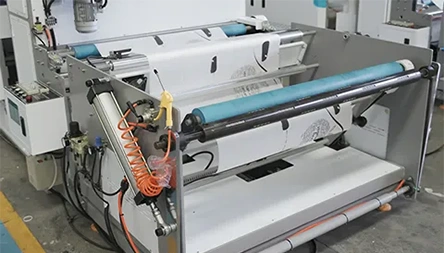

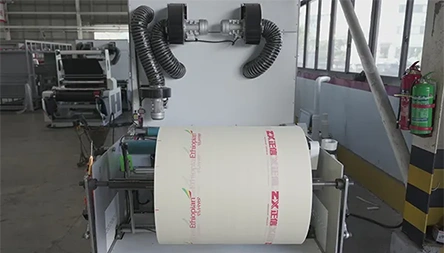

Receiving Part
Receiving Part

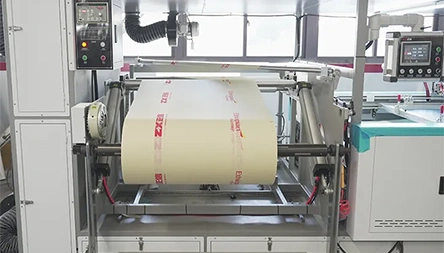

Take-up Section
Connective Band

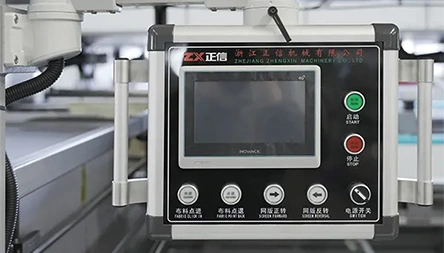

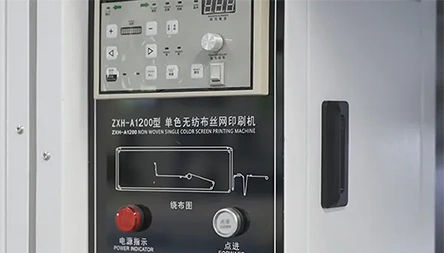

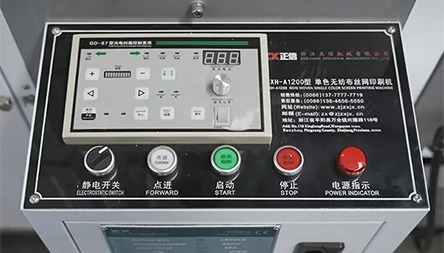

Control Panel
Discharge deviation correction box
Discharge deviation correction box

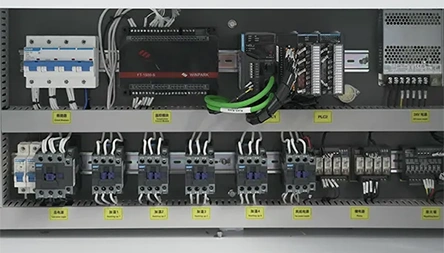

Distribution Box

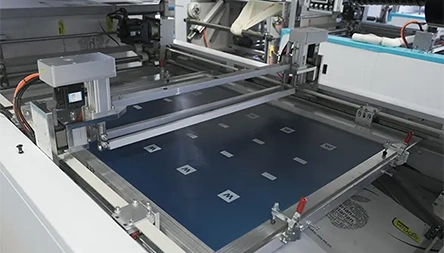

Net Frame and Scraper

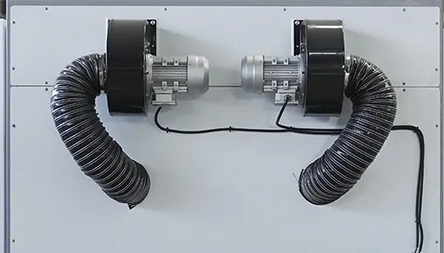

Oven Section of the Dryer

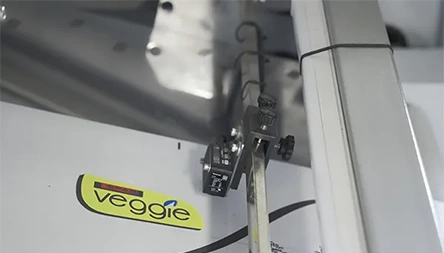

Print Tracking Eye

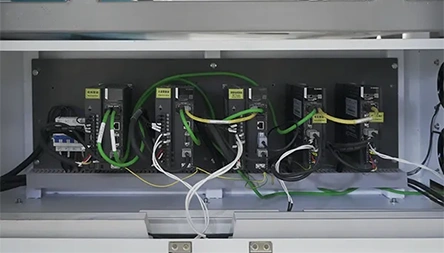

Servo Drive

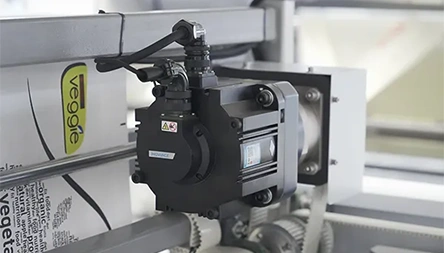

Servo Motor
Application Examples
Single-Color Logo Printing
Large-Format Nonwoven Printing
Promotional Bag Screen Printing
Roll-Fed Nonwoven Screen Printing
What is the main advantage of this fully automatic printing line?
A
It integrates automatic feeding, printing, drying, and collecting into one seamless system. This end-to-end automation drastically saves labor, minimizes manual handling, and eliminates dependency on external weather conditions for consistent, high-quality results.
How does it ensure high-quality prints for premium products?
A
The machine features a pressure equalization system that delivers a thick, uniform ink layer. This produces vibrant, opaque prints with excellent coverage, making it perfectly suited for high-grade, premium non-woven products that require a superior finish.
Can it handle large-format printing efficiently?
A
Yes. Its large printing width allows multiple patterns to be printed simultaneously across the fabric. This ''gang printing'' capability significantly boosts your work efficiency and output for large orders.
How does this machine help reduce material waste?
A
It achieves a remarkably low effective pattern printing gap of just 10mm. By minimizing the unprinted space between consecutive patterns, it drastically reduces material consumption, lowering your production costs per bag.
What ensures the precision and accuracy of every print?
A
Both the main drive and the chromatography system are controlled by high-performance servo motors. This guarantees exceptional printing precision, with accurate and stable registration for every single impression.
Can it be integrated with other bag production equipment?
A
Absolutely. It is designed for seamless integration with transverse cutting, slitting, and bag-making machines. This creates a continuous, highly efficient production line that dramatically improves overall workflow from roll to finished bag.
Is it flexible for different design requirements?
A
Yes, it accommodates various sizes of screen frame plates. This flexibility allows you to easily switch between different bag designs and print sizes, making the machine adaptable to diverse customer orders and market demands.
How reliable is the printing process?
A
The combination of servo motor control and a robust mechanical structure ensures the printing position is extremely accurate and stable over long production runs. This guarantees consistent, repeatable quality batch after batch.
Who is the ideal user for this machine?
A
It is ideal for medium to large non-woven bag manufacturers who need high-volume, high-quality single-color printing with minimal waste and labor, especially those looking to integrate printing into a fully automated production line.
