Two-Color High-Speed Nonwoven Flexo Printing Machine
- Max. Roll width
- 1200mm
- Max Roll Diameter
- 1000mm
- Max. Printing Width
- 1160mm
- Printing Length
- 250-1000mm
Product Introduction
The ZXH-C2 series is a two-color roll-to-roll flexographic printing machine designed for printing logos, text and simple graphics on nonwoven fabric before bag converting. It supports simultaneous two-color printing in one pass, helping nonwoven bag manufacturers improve production efficiency compared with repeated single-color printing.
The machine is available for maximum fabric roll widths of 1200, 1400 and 1600 mm, with corresponding maximum printing widths of 1160, 1360 and 1560 mm. Printing speed is adjustable from 10 to 60 m/min, while the printing length range of 250–1000 mm supports different bag sizes and repeat patterns.
This machine is suitable for nonwoven shopping bags, promotional bags, packaging bags and other roll-fed nonwoven products requiring clear two-color logos or graphics. Model selection should be based on the required material width, printing width, repeat length and production speed.
Parameters
| MAIN TECHNICIAN VARIABLES | ZXH-C21200 | ZXH-C21400 | ZXH-C21600 |
|---|---|---|---|
| Max Fabric Roll Width | 1200mm | 1400mm | 1600mm |
| Max Fabric Roll Diameter | 1000mm | 1000mm | 1000mm |
| Max Printing Width | 1160mm | 1360mm | 1560mm |
| Printing Length | 250-1000mm | 250-1000mm | 250-1000mm |
| Plate Thickness | 2.28/3.94mm | 2.28/3.94mm | 2.28/3.94mm |
| Printing Speed | 10-60m/min | 10-60m/min | 10-60m/min |
| Voltage | 380V | 380V | 380V |
| Total Power | 8kw | 10kw | 12kw |
| Overall Dimension | 4200×2200×2200mm | 4200×2400×2200mm | 4200×2600×2200mm |
| Weight | 1500kg | 1800kg | 2000kg |
Mechanical details

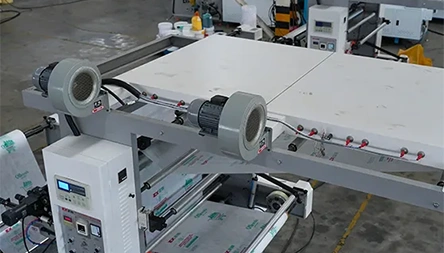

Drying Part Device

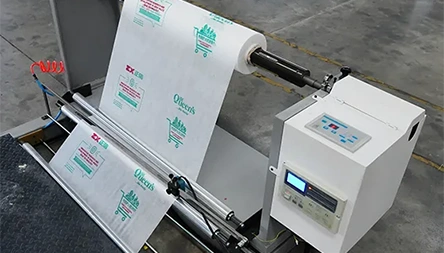

Fabric Rolling

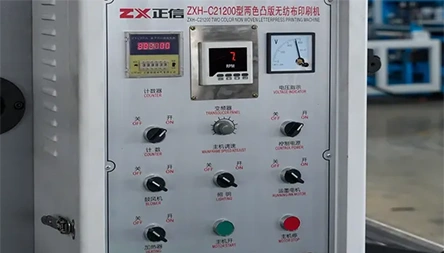

Main power distribution system

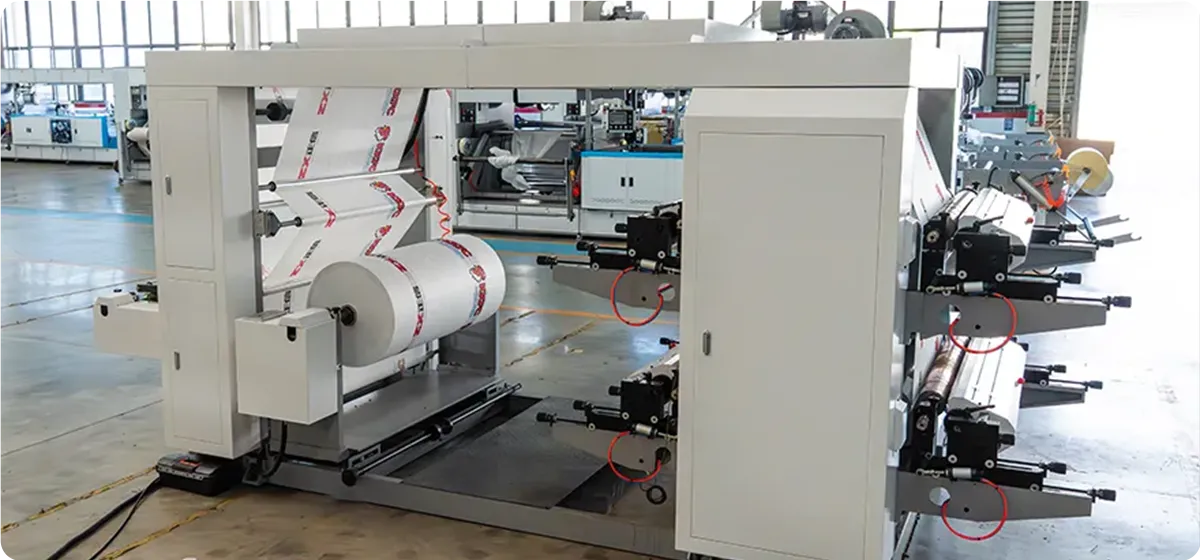

Number of printing colors

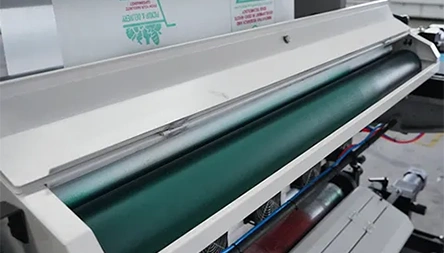

Rubber roller

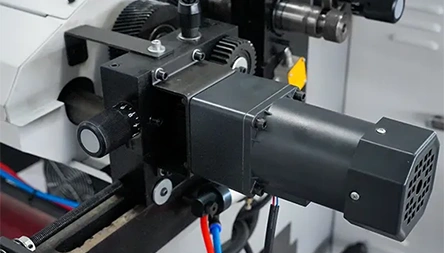

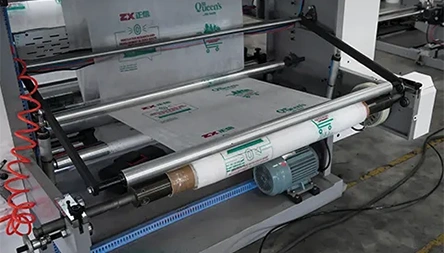

Traction device
Application Examples
Two-Color Flexo Printing
Nonwoven Bag Logo Printing
Roll-to-Roll Nonwoven Printing
Printed Nonwoven Bag Samples
What is the main advantage of a two-color printing machine?
A
It prints two colors simultaneously in a single pass, drastically improving efficiency. This significantly reduces production time and labor costs compared to running the material through a single-color machine twice.
Is the print quality durable?
A
Yes. The machine uses inks with strong adhesion that deeply penetrate the non-woven fibers. This creates prints that are highly resistant to friction and will not fade easily, even after long-term use or storage.
How fast can this machine operate?
A
The printing speed is adjustable from 10 to 60 meters per minute. This wide range allows you to balance speed with quality, running simpler jobs faster and complex designs at a more precise, controlled pace.
What material sizes can it handle?
A
It accommodates large fabric rolls up to 1200mm wide and 1000mm in diameter. The maximum printing width is 1160mm, making it suitable for a wide variety of bag sizes and other non-woven products.
What are the power requirements?
A
This machine operates on a standard industrial 380V power supply. Its total power consumption is 8kW, which is relatively efficient for its output, helping to keep operating costs manageable.
Is it suitable for short runs with frequent design changes?
A
With a printing length range of 220-1000mm and support for standard plate thicknesses (2.28/3.94mm), it offers good flexibility. While not as fast as a rotary screen to change, it allows for versatile production runs.
How does two-color flexo printing compare with single-color printing?
A
Two-color flexo printing applies two colors in one production pass, reducing repeated material handling compared with single-color printing. It is suitable for logos, text and simple graphics that require two-color registration while maintaining efficient roll-to-roll production.
Do you provide technical support and training?
A
Yes. We offer comprehensive support including installation, machine operation training, and maintenance guidance. Our team ensures you can start production quickly and maintain the machine for optimal performance.
