Automatic Two-Color Nonwoven Screen Printing Machine
- Max Fabric Roll Width
- 1250mm
- Max Fabric Roll Diameter
- 1100mm
- Max Printing Size
- 1100×1200mm
- Material Thickness
- 70-150gsm
Product Introduction

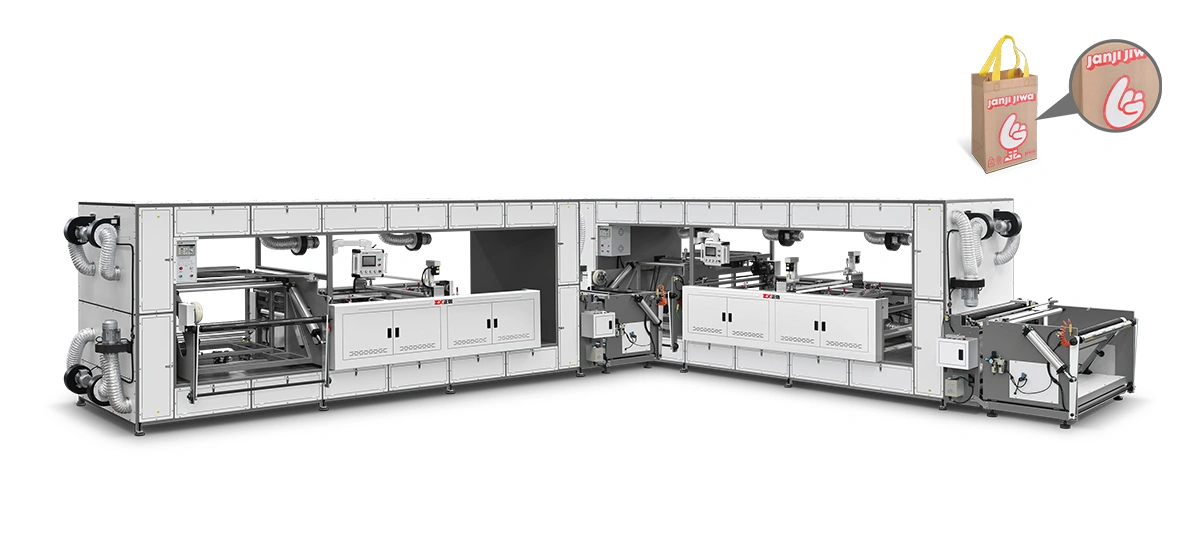

The ZXH-B1200 is an automatic two-color screen printing machine designed for roll-fed nonwoven fabric. It integrates fabric feeding, screen printing, drying and collection into a continuous production process, helping manufacturers produce two-color logos, text and large-format graphics with reduced manual handling.

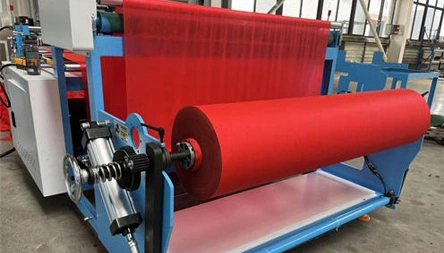

The machine supports nonwoven rolls up to 1250 mm wide and 1100 mm in diameter. Its maximum printing size of 1100 × 1200 mm allows large graphics or multiple smaller patterns to be arranged within one printing area. It is suitable for nonwoven materials from 70 to 150 g/m².
Servo-controlled drive and registration systems help maintain stable print positioning during production. The machine can be combined with cross-cutting, slitting or nonwoven bag-making equipment according to the required production workflow.
The ZXH-B1200 is suitable for shopping bags, promotional bags, gift bags and other nonwoven packaging products requiring two-color screen printing. Actual output depends on pattern size, ink type, material surface, drying conditions and registration requirements.
Parameters
| MAIN TECHNICAL PARAMETERS | ZXH-B1200 |
|---|---|
| Max Fabric Roll Width | 1250mm |
| Max Fabric Roll Diameter | 1100mm |
| Max Printing Size | 1100x1200mm |
| Material Weight | 70-150g/㎡ |
| Printing Speed | 25–50 m/min (1500–3000 m/hour) |
| Voltage | 380V |
| Total Power | 52kw |
| Overall Dimension | 11500×8000×2300mm |
| Weight | 9600KG |
Mechanical details
Two-Color Printing Line Overview

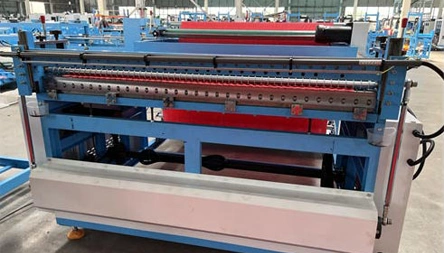

Printing and Drying Section
Application Examples
Two-Color Nonwoven Screen Printing
How many colors can the ZXH-B1200 print?
A
The ZXH-B1200 is designed for two-color screen printing on roll-fed nonwoven fabric. It can print two colors in sequence within one production line, making it suitable for logos, text and graphics that require two-color registration.
What nonwoven materials can the machine handle?
A
The machine is intended for roll-fed nonwoven fabric with a material weight of approximately 70–150 g/m². Material compatibility should also be confirmed according to the fabric surface, coating or lamination, selected ink and required print adhesion.
What is the maximum printing size?
A
The maximum printing size is 1100 × 1200 mm. This large printing area can accommodate one large graphic or several smaller patterns arranged within the same screen layout, depending on the required repeat and finished product dimensions.
How is two-color registration controlled?
A
The machine uses servo-controlled drive and registration systems to help maintain stable material movement and print positioning between the two color stations. Actual registration performance depends on the screen setup, material stability, pattern design and operating conditions.
What printing speed can be expected?
A
The rated printing speed is approximately 25–50 m/min, equivalent to 1500–3000 m/hour. Actual output depends on the pattern size, ink coverage, material surface, drying requirements and registration settings.
When should I choose screen printing instead of flexo printing?
A
Screen printing is suitable when the product requires stronger ink coverage, larger graphic areas or bold two-color designs. Flexographic printing may be more suitable for continuous high-speed roll printing, finer repeated patterns and broader multi-color production requirements.
Do you provide installation and operator training?
A
Yes. Installation guidance, operating instructions and maintenance training can be provided according to the order and destination. On-site service arrangements, travel costs and scheduling should be confirmed before shipment.
What warranty and technical support are available?
A
Warranty terms are confirmed in the sales contract. Zhengxin can provide remote troubleshooting, operating guidance, replacement parts and maintenance support according to the machine configuration and agreed service terms.
