Semi-Automatic Single-Color Nonwoven Bag Screen Printing Machine
- Color
- One color
- Printing Speed
- 20-40pcs/min
- Maximum Size of Screen Frame
- 660×900mm
- Maximum Printing Area
- 500×600mm
Product Introduction
The ZXH-700 is a semi-automatic single-color screen printing machine designed for printing logos, text and simple graphics on finished nonwoven bags and laminated bags. It is intended for small and medium production batches where flexible setup and moderate investment are more important than fully automatic roll-to-roll output.
The machine supports printing speeds of 20–40 pieces per minute, a maximum screen frame size of 660 × 900 mm and a maximum printing area of 500 × 600 mm. Two drying ovens, each 3000 mm long, help maintain stable drying conditions after printing.
The ZXH-700 is suitable for promotional bags, shopping bags, gift bags and other nonwoven packaging products requiring single-color printing. Actual output depends on bag size, printing area, ink type, operator loading speed and drying requirements.
Parameters
| MAIN TECHNICIAN VARIABLES | ZXH-700 |
|---|---|
| Color | One color |
| Printing Speed | 20-40pcs/min |
| Maximum Size of Screen Frame | 660×900mm |
| Maximum Printing Area | 500×600mm |
| Drying Oven | 2 sets (3000mm length each one) |
| Apply for | Non-woven fabric / Laminated fabric |
| Total Power | 20KW |
| Power Source | 380V/50Hz |
| Overall Dimension | 9000×1400×1400mm |
| Weight | 800kg |
Mechanical details
Bag Feeding Unit
Bag Alignment Unit

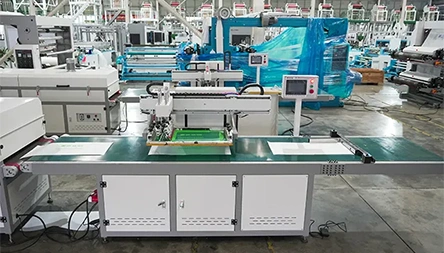

Machine Host

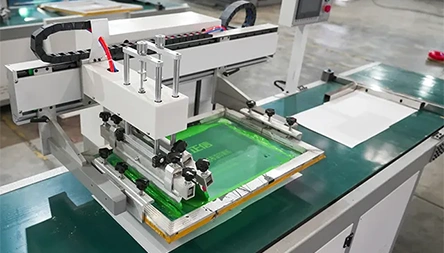

Screen Printing Unit

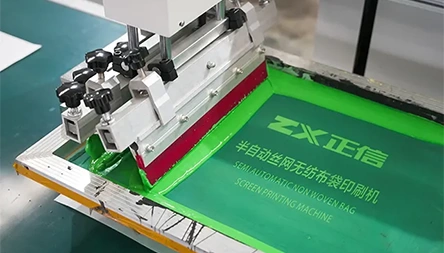

Squeegee and Printing Platform

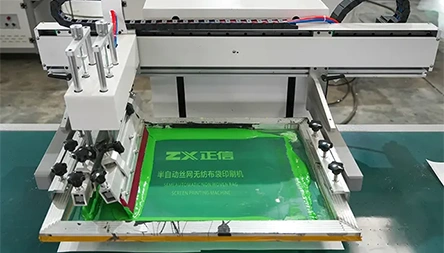

Screen Frame
Application Examples
Single-Color Logo Printing
Nonwoven Shopping Bag Printing
Laminated Bag Screen Printing
Promotional Bag Printing
What materials can the ZXH-700 print?
A
The ZXH-700 is designed for printing on finished nonwoven bags and laminated nonwoven bags. Material suitability should be confirmed according to the fabric surface, lamination type, ink system and required print adhesion.
What is the maximum printing area?
A
The maximum printing area is 500 × 600 mm, while the maximum supported screen frame size is 660 × 900 mm. The actual printable area should be confirmed according to the bag size, pattern position and screen frame setup.
How many colors can the machine print?
A
The ZXH-700 is a single-color screen printing machine. It is suitable for logos, text and simple graphics that require one-color printing. Multi-color designs normally require separate printing passes or a different printing machine configuration.
What production speed can be expected?
A
The rated printing speed is 20–40 pieces per minute. Actual output depends on bag size, printing area, ink type, drying requirements, operator loading speed and the stability of bag positioning.
Is the ZXH-700 suitable for finished bags?
A
Yes. The machine is intended for printing on finished nonwoven and laminated bags. It is suitable for shopping bags, promotional bags, gift bags and other flat bag products that can be positioned steadily during printing.
How are the printed bags dried?
A

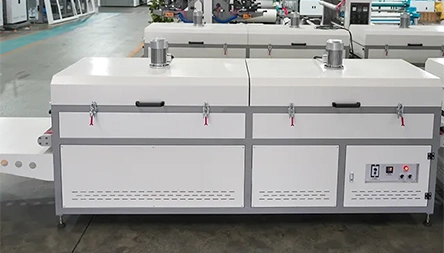

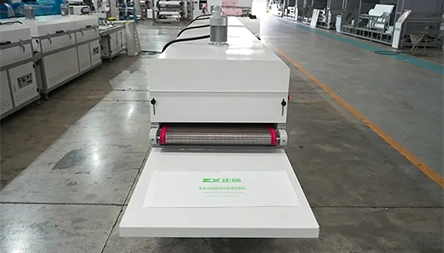

The ZXH-700 is equipped with two drying ovens, each approximately 3000 mm long. Drying performance depends on the selected ink, printing coverage, operating speed, temperature settings and material surface.
When should I choose the ZXH-700 instead of the ZXH-A1200?
A
Choose the ZXH-700 for small or medium batches, finished-bag printing and a lower-investment semi-automatic setup. The ZXH-A1200 is more suitable for roll-fed nonwoven material, larger printing areas and continuous automatic production.
Do you provide installation and operator training?
A
Yes. Installation guidance, operating instructions and maintenance training can be provided according to the order and destination. On-site service arrangements, travel costs and scheduling should be confirmed before shipment.
What warranty and spare-parts support are available?
A
Warranty terms and spare-parts coverage are confirmed in the sales contract. Zhengxin can provide replacement parts, maintenance guidance and technical support according to the machine configuration and service agreement.
How can technical problems be handled after installation?
A
Remote troubleshooting can be provided through photos, videos and operating data. For more complex issues, replacement parts or on-site technical service can be arranged according to the fault condition and service terms.
